Project Index

Crypto Evaluation & Readiness for Infrastructure Adaptation (Post-Quantum)

Overview

Quick Links

• Quick Start - Get started in 5 minutes
• User Manual - Complete feature documentation
• API Reference - REST API endpoints
• Report Exports - PDF, Excel, CBOM, CSV, and JSON exports
• Deployment Guide - Production deployment
• Admin Guide - Administration tasks

Project Details

• Status: ✅ Deployed and Live
• URL: https://pqcs.dysfunktion.tech
• Platform: cPanel Shared Hosting
• Stack: Python 3.11, FastAPI, SQLite

Key Features

• 7 Cryptographic Collectors (TLS, SSH, VPN, DB, OS, App Config, Cert Store)
• SCAD Risk Scoring Framework (7 criteria)

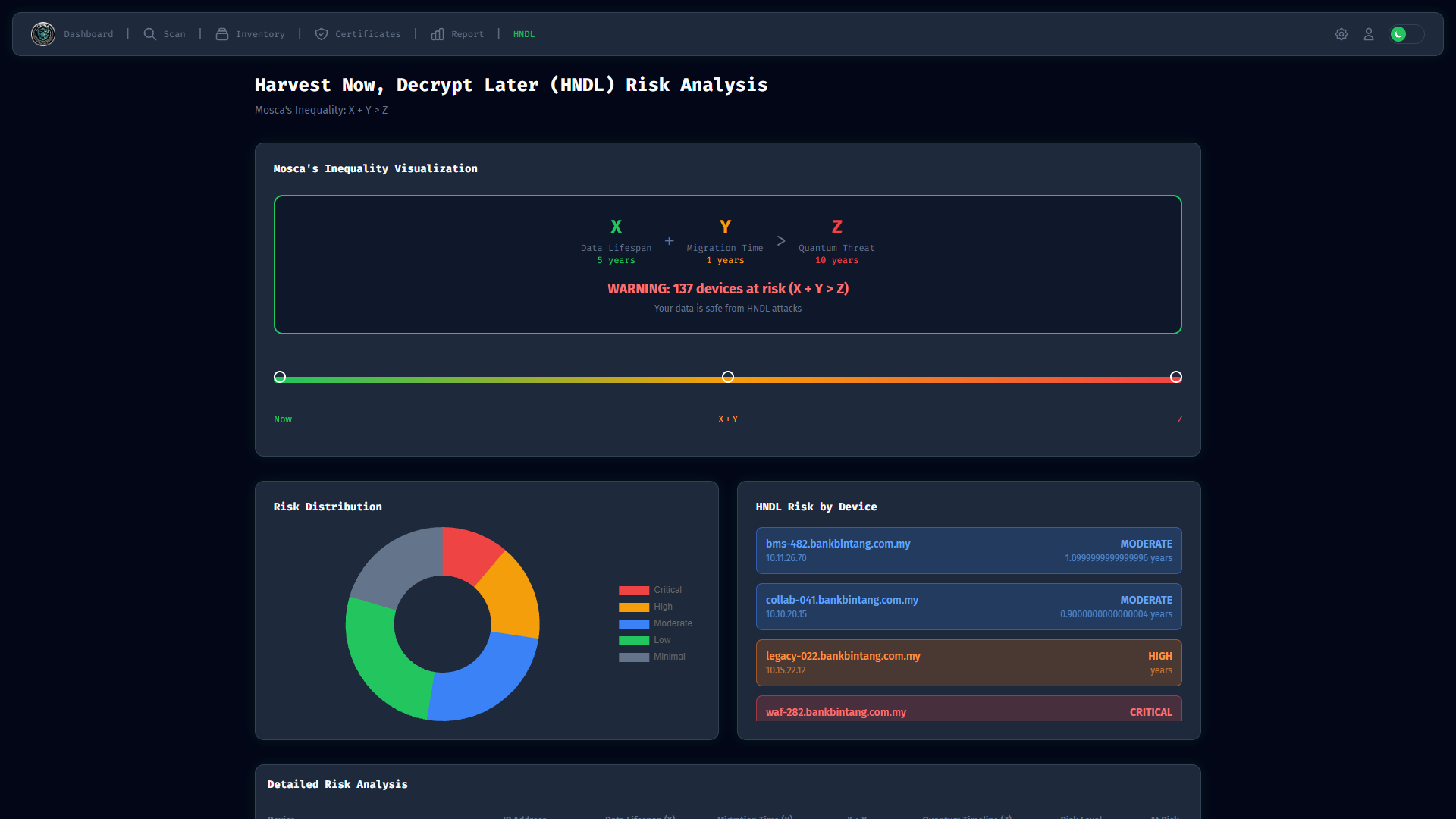

• HNDL Risk Calculator (Mosca's Inequality)
• Certificate Chain Analysis
• MySEAL Compliance
• Web Dashboard + CLI

Current Release Highlights

• Enterprise demo-data generation for up to 500 devices across vendors, device archetypes, collector detections, and HNDL severities.
• Paginated Device Inventory and Device Risk Assessment tables for large datasets.
• Persistent backend report queue with progress, recovery, downloads, and deletion.
• WeasyPrint PDF reports and populated PQC Excel template exports.
• Generated Reports at /report-exports, with export actions unified under Export to on /report.

Getting Started

1. First Time Setup (5 minutes)

# Install dependencies
pip install -e .

# Create admin user
ceria --verbose dashboard

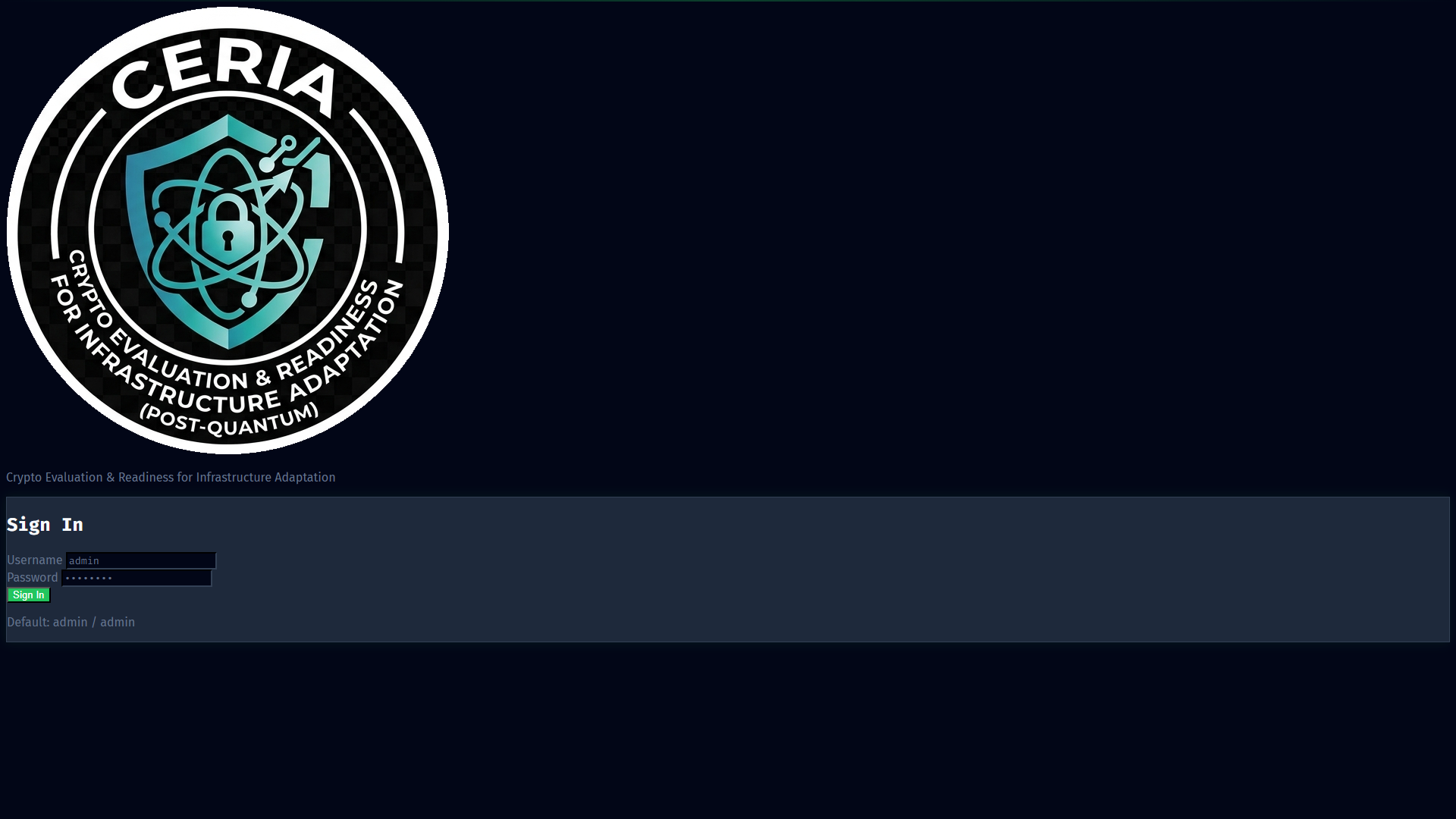

# Then access http://localhost:8080/login
# Click "Register" to create first admin user (auto-assigned)

2. Run Your First Scan (5 minutes)

# Option A: CLI
ceria scan 192.168.1.0/24 --name "My First Scan"

# Option B: Web Dashboard
# 1. Open http://localhost:8080
# 2. Login

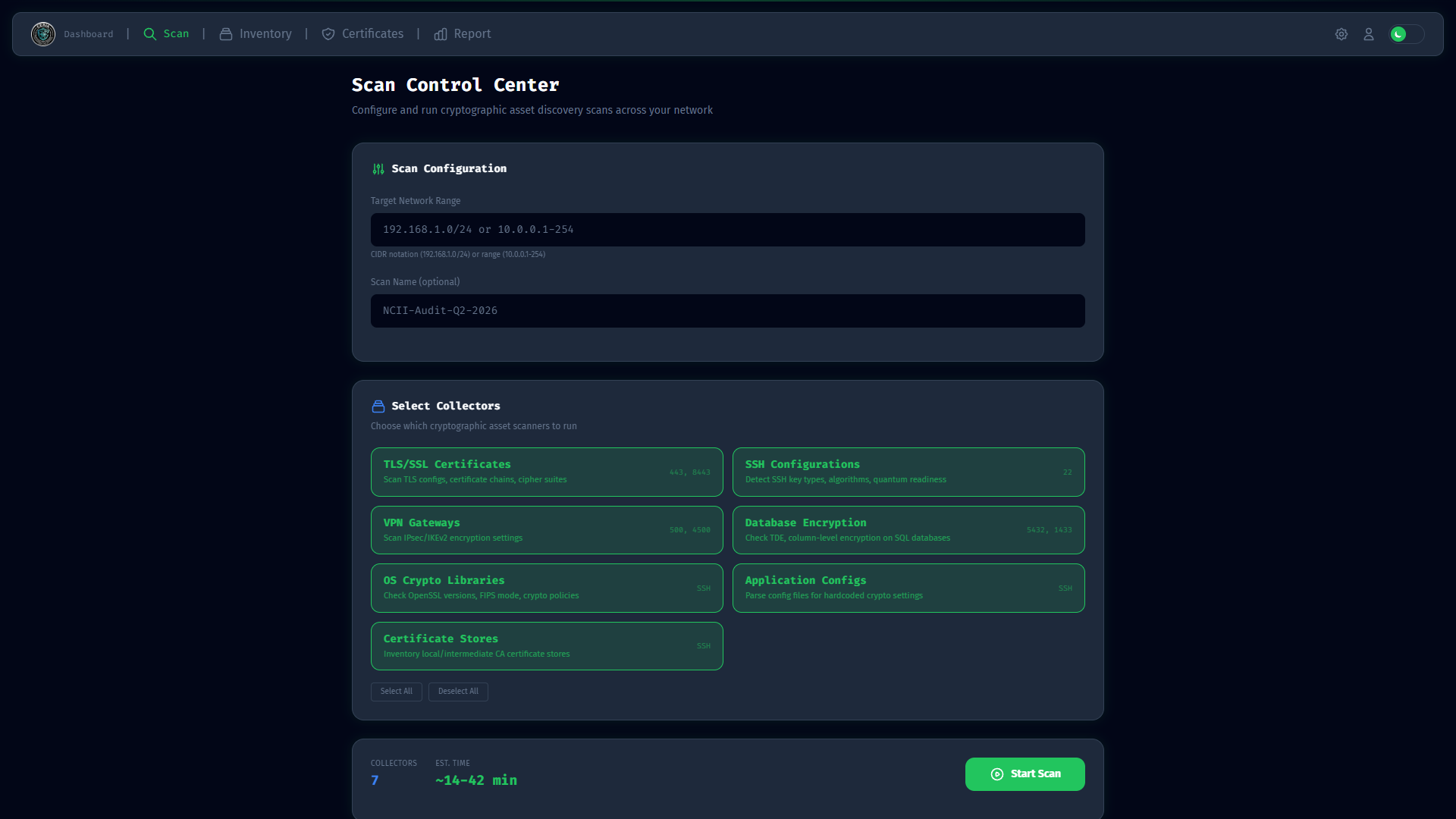

# 3. Go to "Scan" page
# 4. Enter target: 192.168.1.0/24
# 5. Click "Start Scan"

3. View Results (2 minutes)

# CLI
ceria report --session 1 --format table

# Web

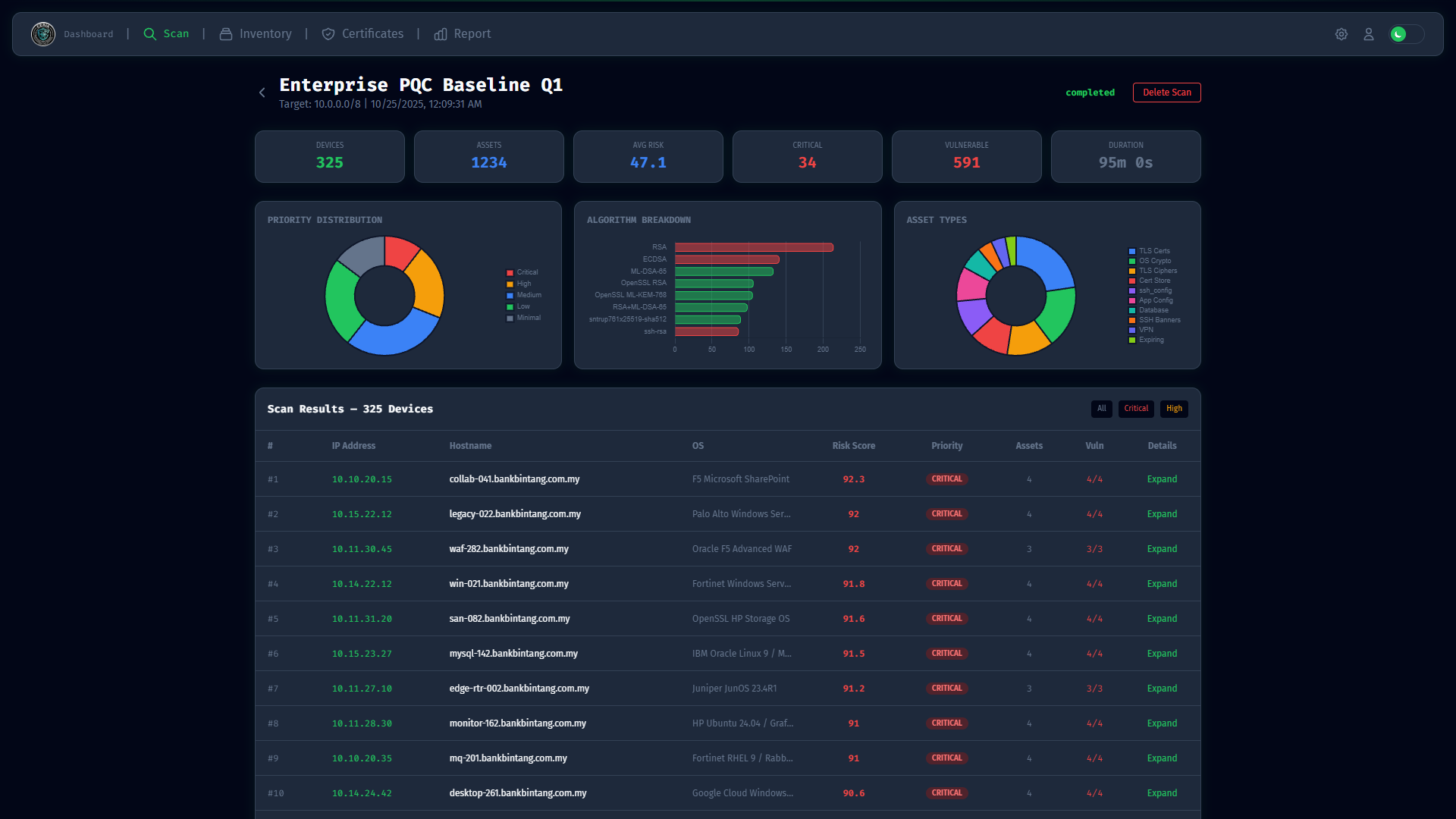

# Go to "Scan Detail" → Expand devices

4. Key Actions to Take

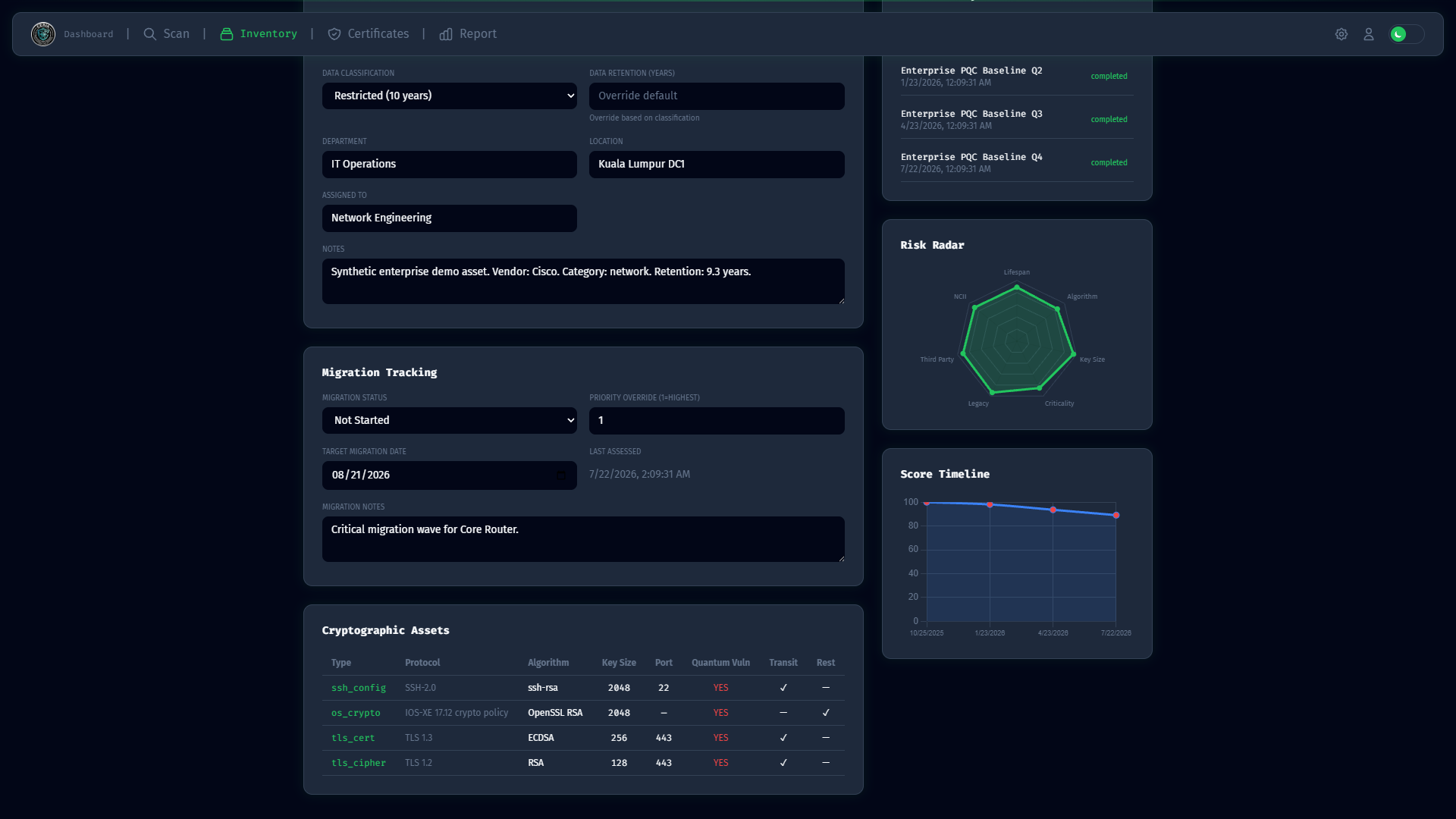

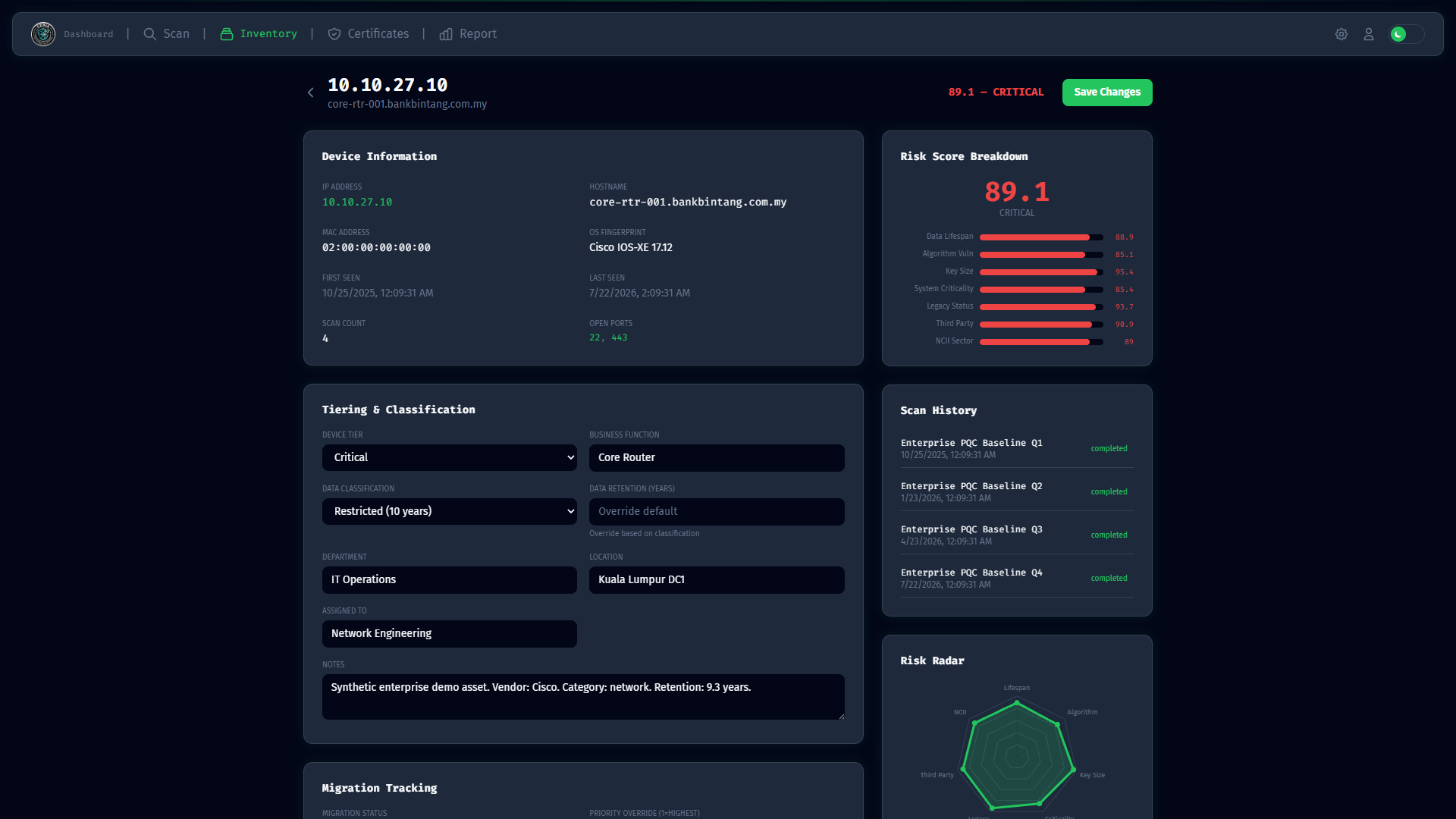

Set Device Priorities

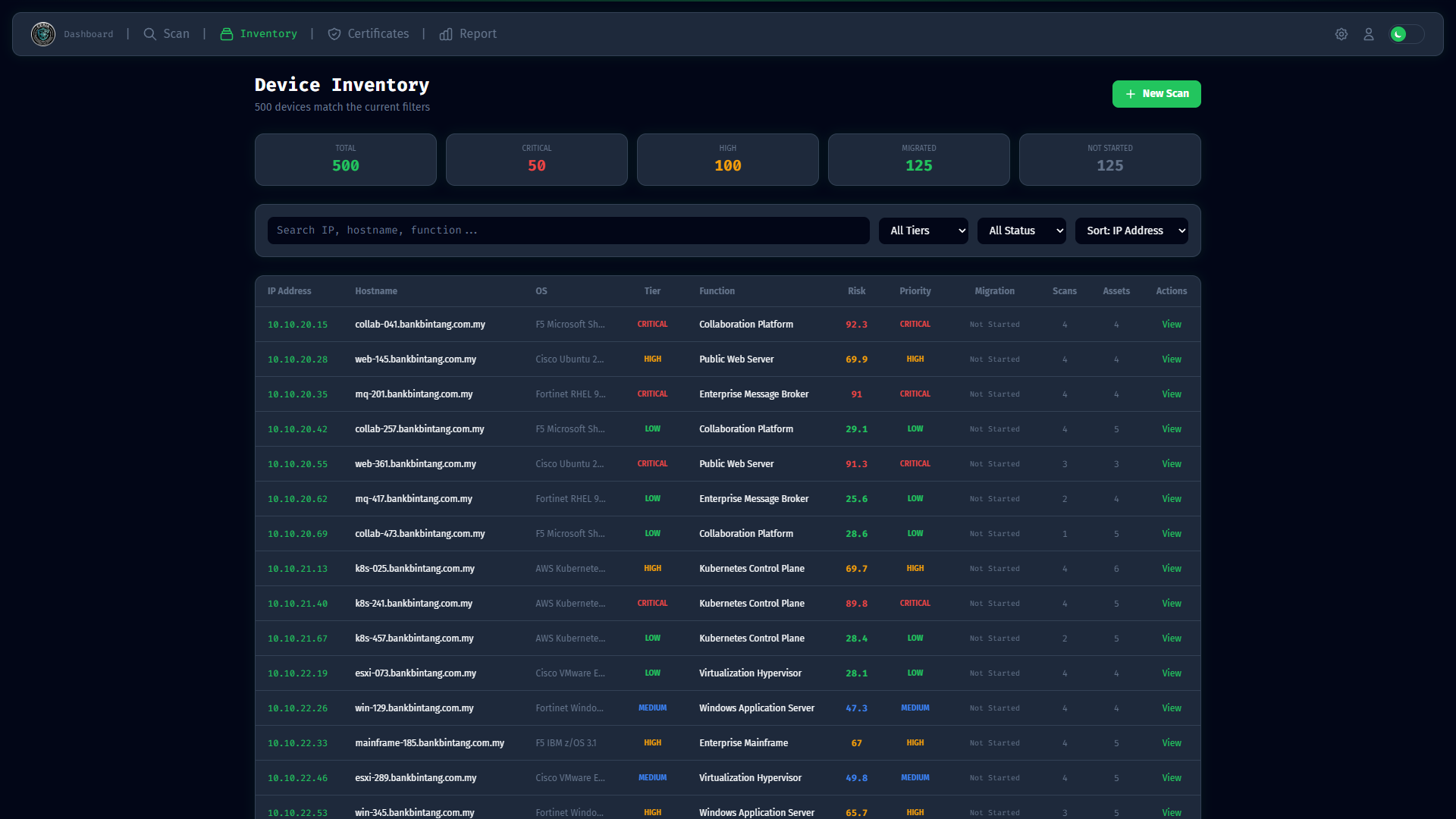

1. Go to Inventory
2. Click on high-risk device
3. Select Tier: Critical / High / Medium / Low
4. Set Data Retention Years for HNDL calculation

Load Enterprise Demo Data

ceria demo-data --count 500 --snapshots 4 --seed 20260722

This creates a timestamped SQLite backup before loading deterministic data for all supported vendors, device types, collector detections, risk priorities, and HNDL severities.

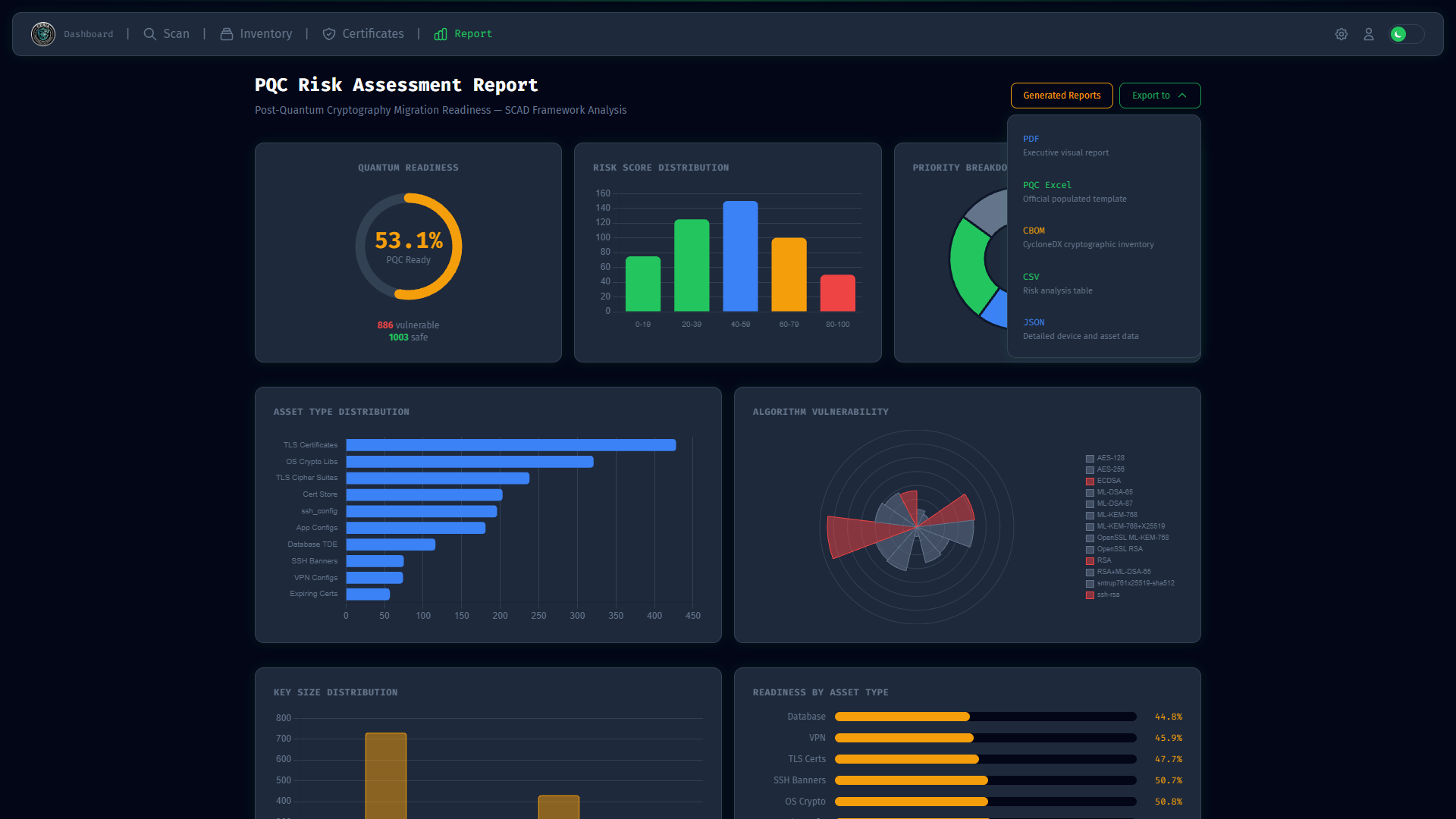

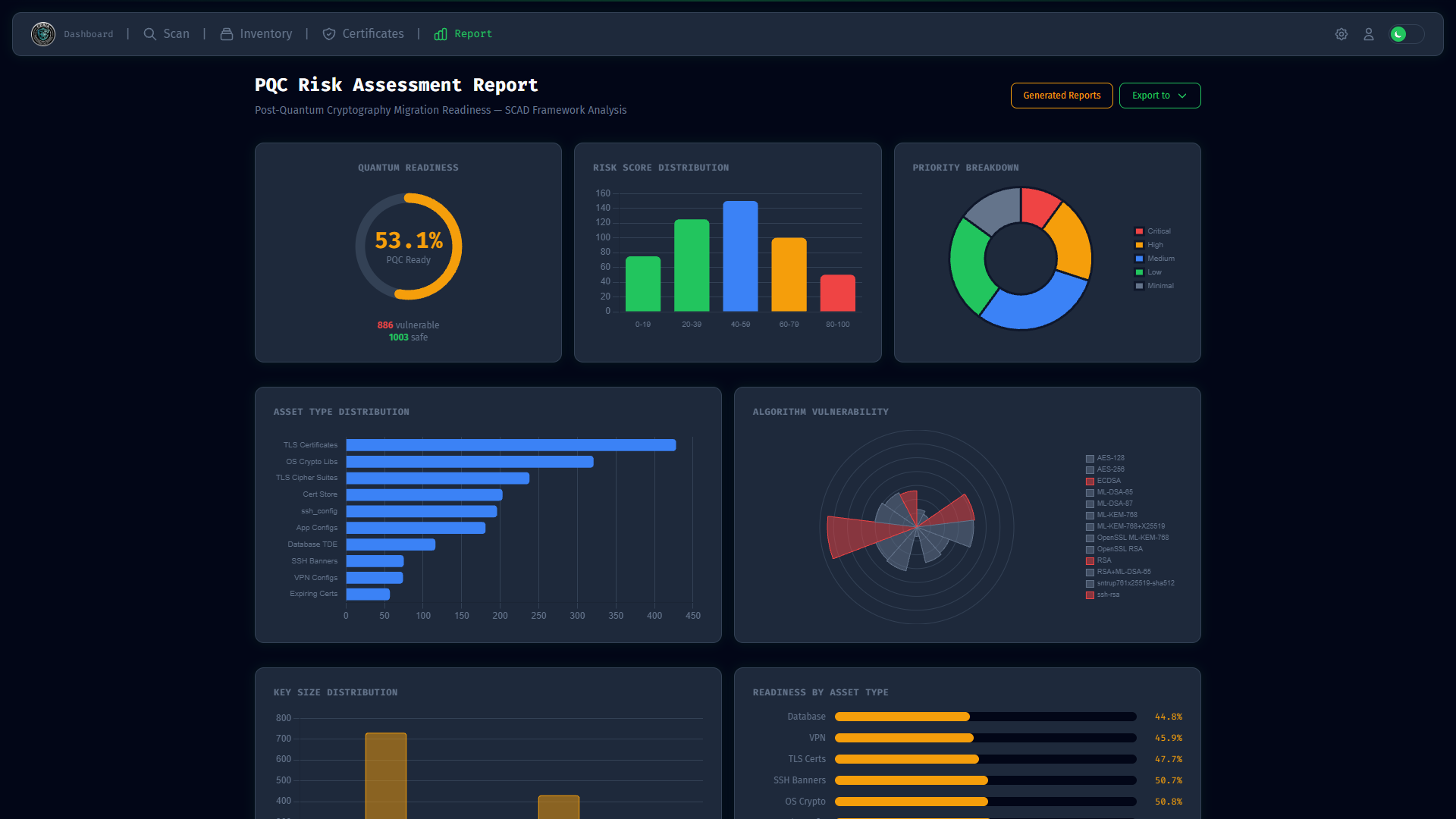

Export Reports

1. Open /report.
2. Select Export to and choose PDF, PQC Excel, CBOM, CSV, or JSON.
3. Follow backend progress in the on-page status panel.
4. Open /report-exports to download or delete completed files.

Common Commands Cheat Sheet

Web Dashboard URLs

Need Help?

See MANUAL.md for complete documentation.

Installation

Requirements

• Python 3.10+
• nmap (system package)
• OpenSSL libraries

Local Installation

# Clone repository
git clone <repo-url>
cd pqc

# Install with pip
pip install -e .

# Or install development dependencies
pip install -e ".[dev]"

# Verify installation
ceria --version

Environment Setup

Create .env file:

# Required
SECRET_KEY=your-secure-secret-key-here
DATABASE_URL=sqlite:///ceria.db

# Optional
DASHBOARD_HOST=0.0.0.0
DASHBOARD_PORT=8080
NCII_SECTOR=digital

# SSH Credentials (for remote collectors)
SSH_USERNAME=admin
SSH_PASSWORD=your-ssh-password
SSH_KEY_PATH=/path/to/private/key

# Database Scan Credentials
DB_SCAN_USERNAME=db_user
DB_SCAN_PASSWORD=db_password

NCII Sectors

Available sectors: defense, finance, healthcare, telecom, energy, transport, water, waste, gov, broadcast, digital

Report Generation Dependencies

Install the project with its declared dependencies to enable all exports. WeasyPrint generates PDFs, while openpyxl populates the official PQC Excel workbook. The application account must be able to write to outputs/reports.

Overview

What is CERIA?

CERIA discovers cryptographic assets across your network infrastructure and prioritizes them for Post-Quantum Cryptography (PQC) migration.

Why PQC Migration?

Quantum computers will break current cryptographic algorithms:

• RSA (all key sizes)
• ECDSA/ECDH (all curves)
• DSA/DSS
• Diffie-Hellman

The Threat Timeline

Key Features

1. Automated Discovery

2. Risk-Based Prioritization

3. Certificate Management

4. Compliance Reporting

• MySEAL (Malaysia)
• MyKriptografi NCII
• NACSA standards

Who Should Use CERIA?

• CISOs - Strategic PQC migration planning
• Security Engineers - Technical asset discovery
• Compliance Officers - Regulatory reporting
• System Administrators - Device inventory management

Supported Platforms

Enterprise Dataset and Reporting

CERIA supports demo assessments with up to 500 devices. Inventory and risk tables paginate these datasets, while export jobs run in the backend and remain available from Generated Reports.

Architecture

System Overview

Data Flow

1. Network Discovery

Target Range → nmap scan → Live hosts → Port detection → Device records

2. Cryptographic Collection

Device + Open Ports → Collector selection → Asset scanning → Crypto assets

3. Risk Analysis

Crypto assets → SCAD scoring → HNDL calculation → Priority ranking

4. Reporting

Prioritized assets → Visualization → Export (PDF/CSV/CBOM)

Collector Types

Database Schema

Core Tables

• devices - Network devices discovered
• crypto_assets - Cryptographic findings
• certificates - X.509 certificates
• risk_scores - Calculated risk scores
• scan_sessions - Scan metadata
• users - Authentication

Relationships

ScanSession (1) ──▶ (N) Device (1) ──▶ (N) CryptoAsset
                                    ──▶ (N) Certificate
                                     ──▶ (1) RiskScore

Report Export Pipeline

/report Export to -> POST /api/v1/reports/exports -> persistent ReportExport job
    -> background worker -> WeasyPrint / openpyxl / CSV / JSON / CycloneDX
    -> unique file in outputs/reports -> download or delete from /report-exports

Queued and processing jobs continue when users navigate away. Startup recovery resumes queued work and safely marks interrupted jobs.

User Manual

A comprehensive guide for the Post-Quantum Cryptography Scanner implementing Malaysia's NCII (National Critical Information Infrastructure) SCAD Framework.

Table of Contents

1. Overview
2. Architecture
3. Installation & Setup
4. CLI Usage
5. Web Dashboard
6. Scanning Features
7. Cryptographic Collectors
8. Risk Scoring (SCAD Framework)
9. HNDL Risk Calculator
10. Certificate Management
11. Compliance & Reporting
12. Migration Planning
13. API Reference
14. Troubleshooting

Overview

PQC Scanner discovers cryptographic assets across your network and prioritizes them for Post-Quantum Cryptography (PQC) migration based on the 7-criterion SCAD Framework.

Key Features

• 7 Cryptographic Collectors: TLS/SSL, SSH, VPN, Database, OS Crypto, App Config, Certificate Stores
• SCAD Risk Scoring: 7-criterion framework for PQC migration prioritization
• HNDL Risk Calculator: Mosca's Inequality implementation for quantum exposure risk
• Certificate Chain Analysis: Full chain PQC assessment with CA roadmap tracking
• Vendor Readiness Tracking: Cisco, Juniper, Fortinet, AWS, Azure, and more
• MySEAL/MyKriptografi Compliance: Malaysia NCII compliance reporting
• Web Dashboard: Real-time scanning, visualization, and reporting
• CLI Interface: Full command-line access for automation

Technology Stack

• Backend: Python 3.11, FastAPI, SQLAlchemy, SQLite
• Frontend: Jinja2 templates, Tailwind CSS, Chart.js, G6 v5 (AntV)
• CLI: Click-based interface
• Scanning: python-nmap, sslyze, paramiko, cryptography

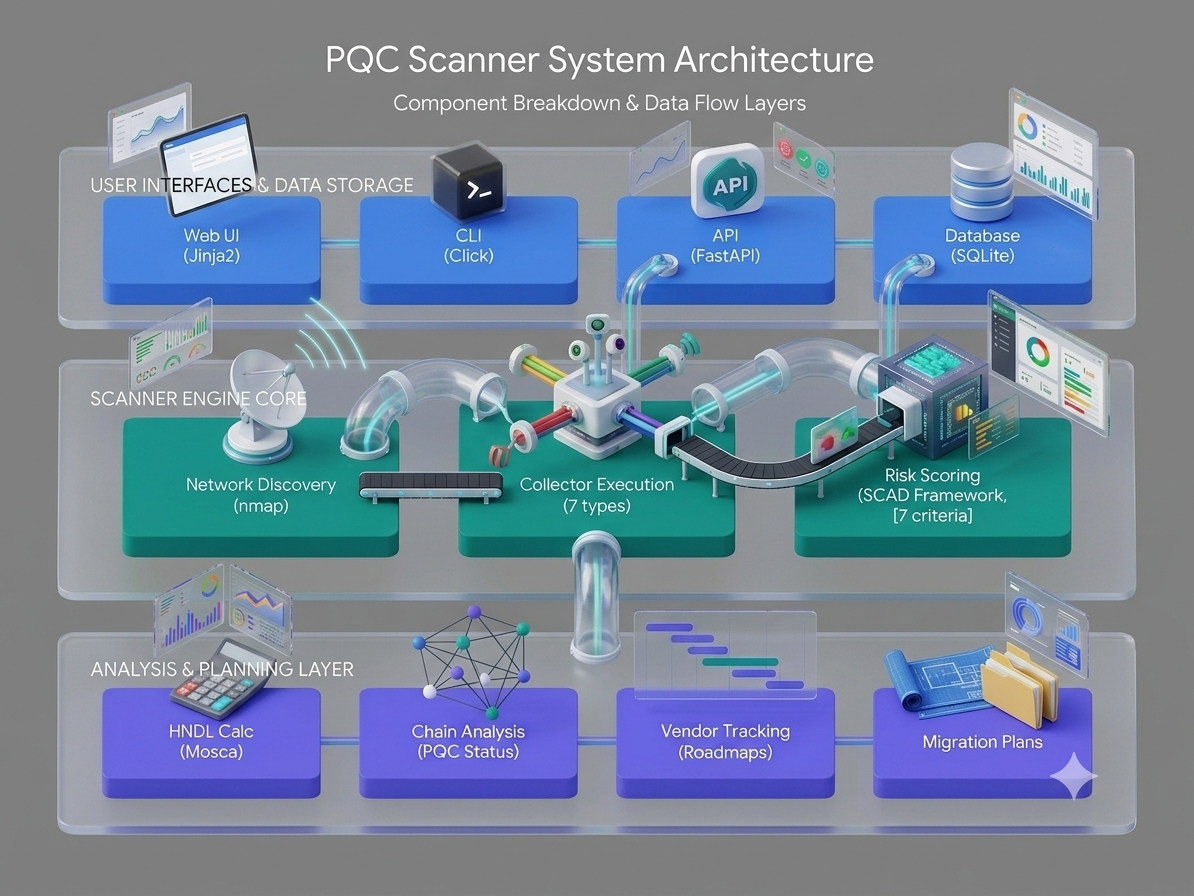

Architecture

Scanner Pipeline:
Network Discovery (nmap) → Port Detection → Collector Execution → Risk Scoring → DB Storage

├── Network Discovery
│   └── nmap host discovery, OS fingerprinting, port scanning
│
├── Cryptographic Collectors
│   ├── TLS/SSL (sslyze + banner fallback)
│   ├── SSH (ssh-audit + nmap scripts)
│   ├── VPN (IKE probes)
│   ├── Database (TDE check)
│   ├── OS Crypto (certificate stores)
│   ├── App Config (configuration files)
│   └── Certificate Store (system stores)
│
├── Risk Analysis
│   ├── SCAD 7-criterion scoring
│   ├── HNDL risk calculation
│   ├── Certificate chain analysis
│   └── Vendor readiness assessment
│
└── Reports & Compliance
    ├── MySEAL compliance checking
    ├── Migration recommendations
    ├── CBOM export (CycloneDX)
    ├── PDF/CSV/JSON reports
    └── G6 dependency graphs

Installation & Setup

Requirements

• Python 3.10+
• nmap (system package)
• OpenSSL libraries

Installation

# Clone repository
git clone <repo-url>
cd pqc

# Install with pip
pip install -e .

# Or install development dependencies
pip install -e ".[dev]"

# Verify installation
pqcs --version

Configuration

Environment Variables (.env file)

# Required
SECRET_KEY=your-secure-secret-key-here
DATABASE_URL=sqlite:///pqcs.db

# Optional
DASHBOARD_HOST=0.0.0.0
DASHBOARD_PORT=8080
NCII_SECTOR=digital

# SSH Credentials (for remote collectors)
SSH_USERNAME=admin
SSH_PASSWORD=your-ssh-password
SSH_KEY_PATH=/path/to/private/key

# Database Scan Credentials
DB_SCAN_USERNAME=db_user
DB_SCAN_PASSWORD=db_password

NCII Sectors

Available sectors: defense, finance, healthcare, telecom, energy, transport, water, waste, gov, broadcast, digital

CLI Usage

Global Options

pqcs [OPTIONS] COMMAND [ARGS]...

Options:
  --db-url TEXT       Database URL (env: DATABASE_URL)
  --verbose, -v       Enable debug logging
  --version           Show version
  --help              Show help

Commands

1. Scan Network

# Basic scan
ceria scan 192.168.1.0/24

# Named scan
ceria scan 192.168.1.0/24 --name "Production Network Scan"

# Specific collectors only
ceria scan 192.168.1.0/24 --collectors tls,ssh,vpn

# All available collectors
ceria scan 192.168.1.0/24 --collectors tls,ssh,vpn,db,os_crypto,app_config,cert_store

• tls - TLS/SSL certificates and cipher suites
• ssh - SSH algorithms and host keys
• vpn - VPN/IKE configuration
• db - Database encryption (TDE)
• os_crypto - OS certificate stores
• app_config - Application crypto configs
• cert_store - Certificate stores

2. Network Discovery

# Discover hosts without full crypto scan
ceria discover 192.168.1.0/24 --ports 22,443,8443

3. Generate Reports

# Table format (console)
ceria report --session 1 --format table

# Filter by priority
ceria report --session 1 --priority CRITICAL --format table

# Export to CSV
ceria report --session 1 --format csv --output report.csv

# Export to JSON
ceria report --session 1 --format json --output report.json

# Export to PDF
ceria report --session 1 --format pdf --output report.pdf

# Export CBOM (CycloneDX)
ceria report --session 1 --format cbom --output cbom.json

4. List Sessions

ceria sessions

5. Launch Dashboard

# Default port 8080
ceria dashboard

# Custom port
ceria dashboard --port 3000 --host 127.0.0.1

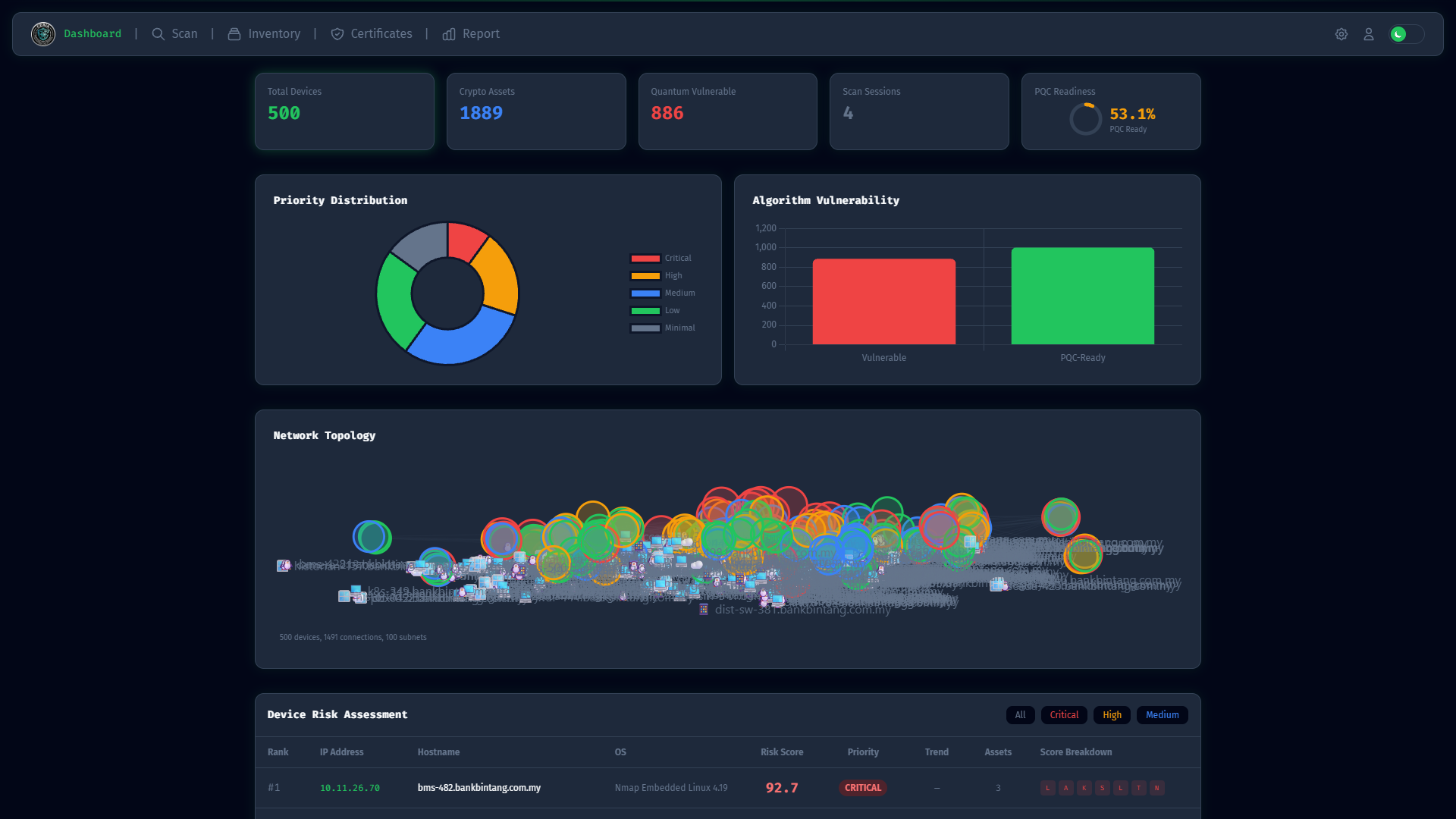

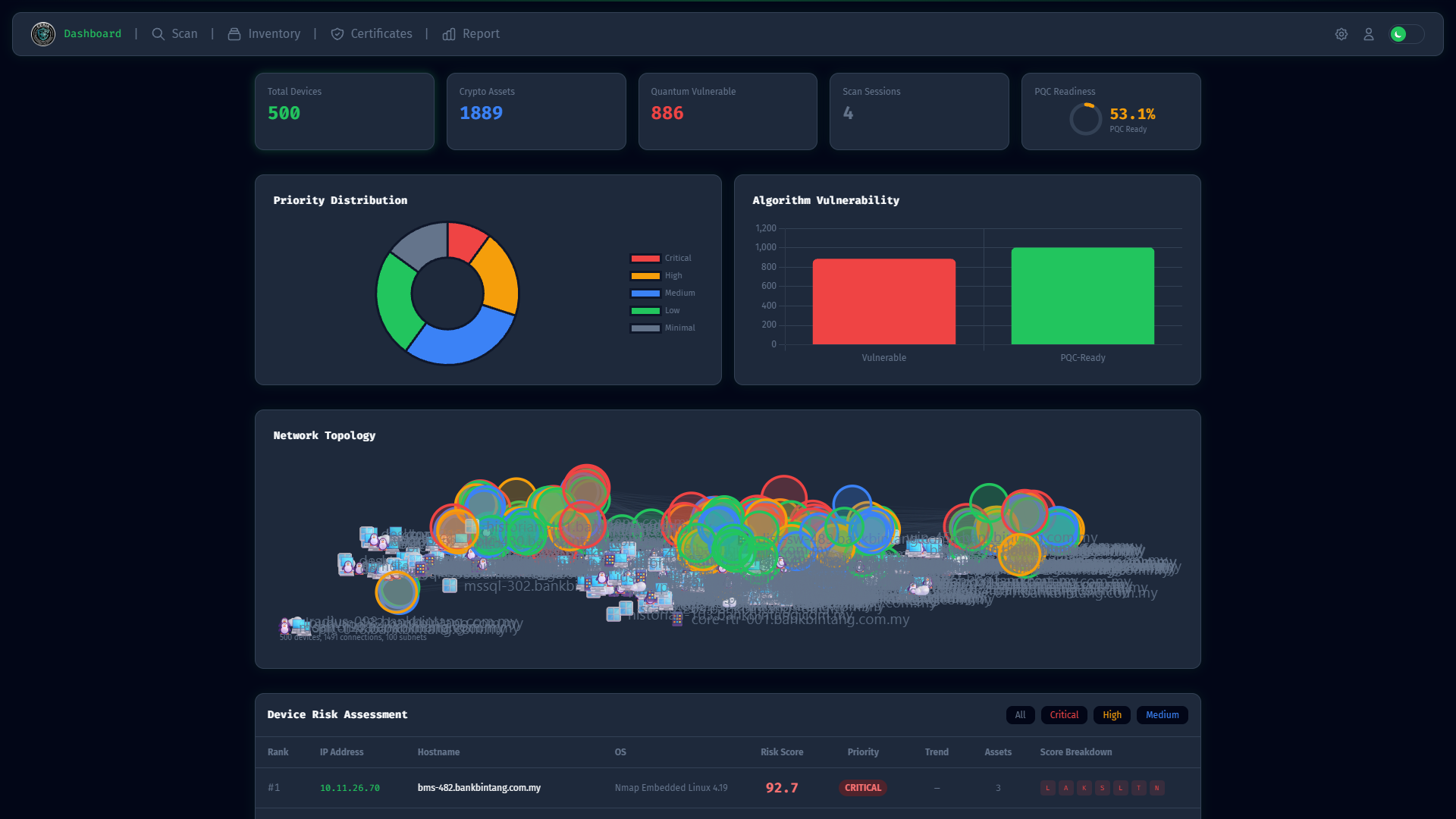

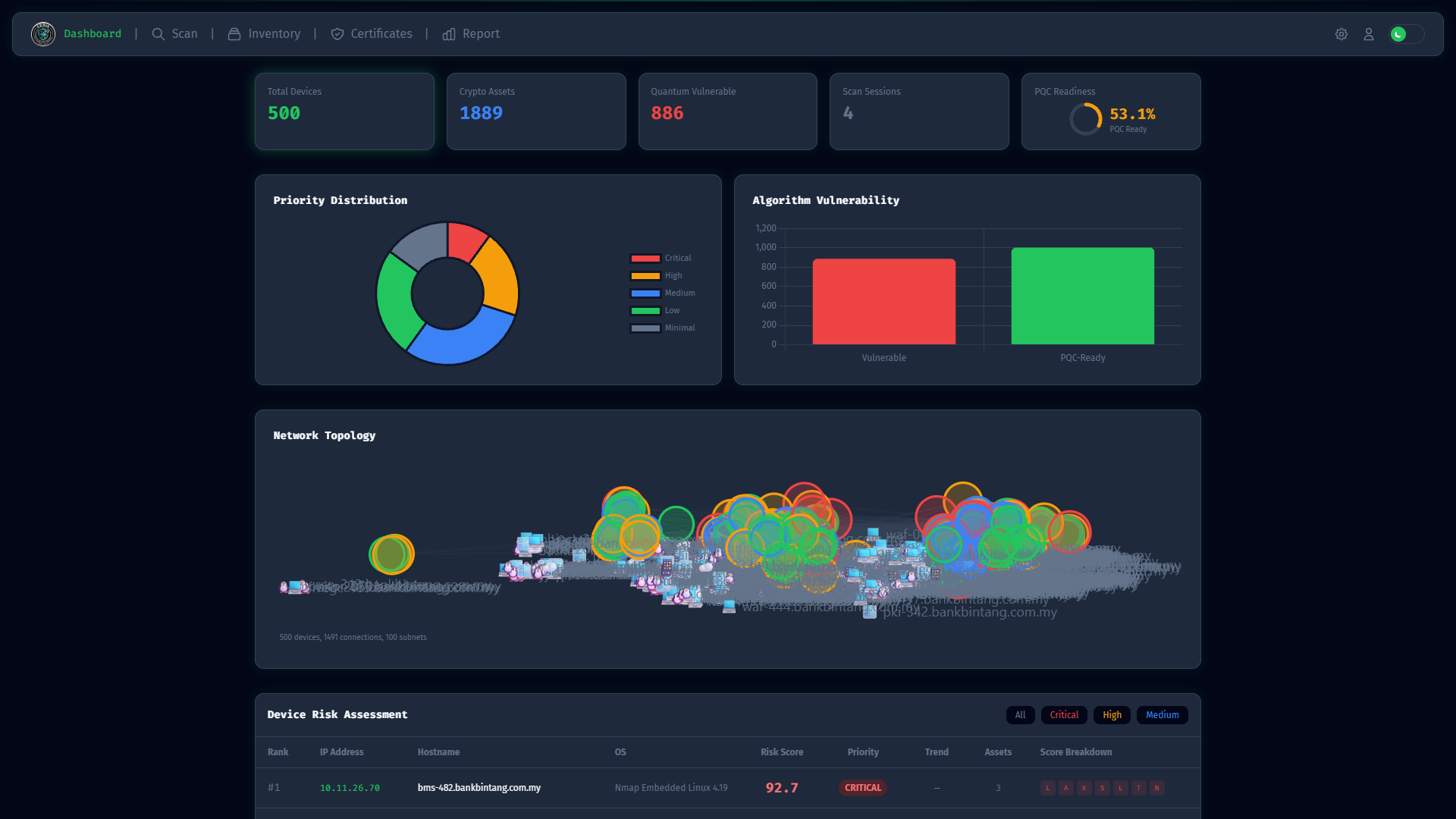

Web Dashboard

Access

http://localhost:8080 (local)
https://pqcs.dysfunktion.tech (deployed)

Pages

Enterprise Demo Data

ceria demo-data --count 500 --snapshots 4 --seed 20260722

The command backs up SQLite before creating a deterministic enterprise dataset. It covers all supported vendors, infrastructure archetypes, collector detection types, priority bands, and varied HNDL outcomes. Use --append to retain existing scan-domain data.

Queued Report Exports

See Report Exports for the complete workflow and screenshots.

The /report Export to dropdown queues PDF, PQC Excel, CBOM, CSV, or JSON generation. Progress comes from the backend worker. Completed exports receive timestamped UUID-based filenames.

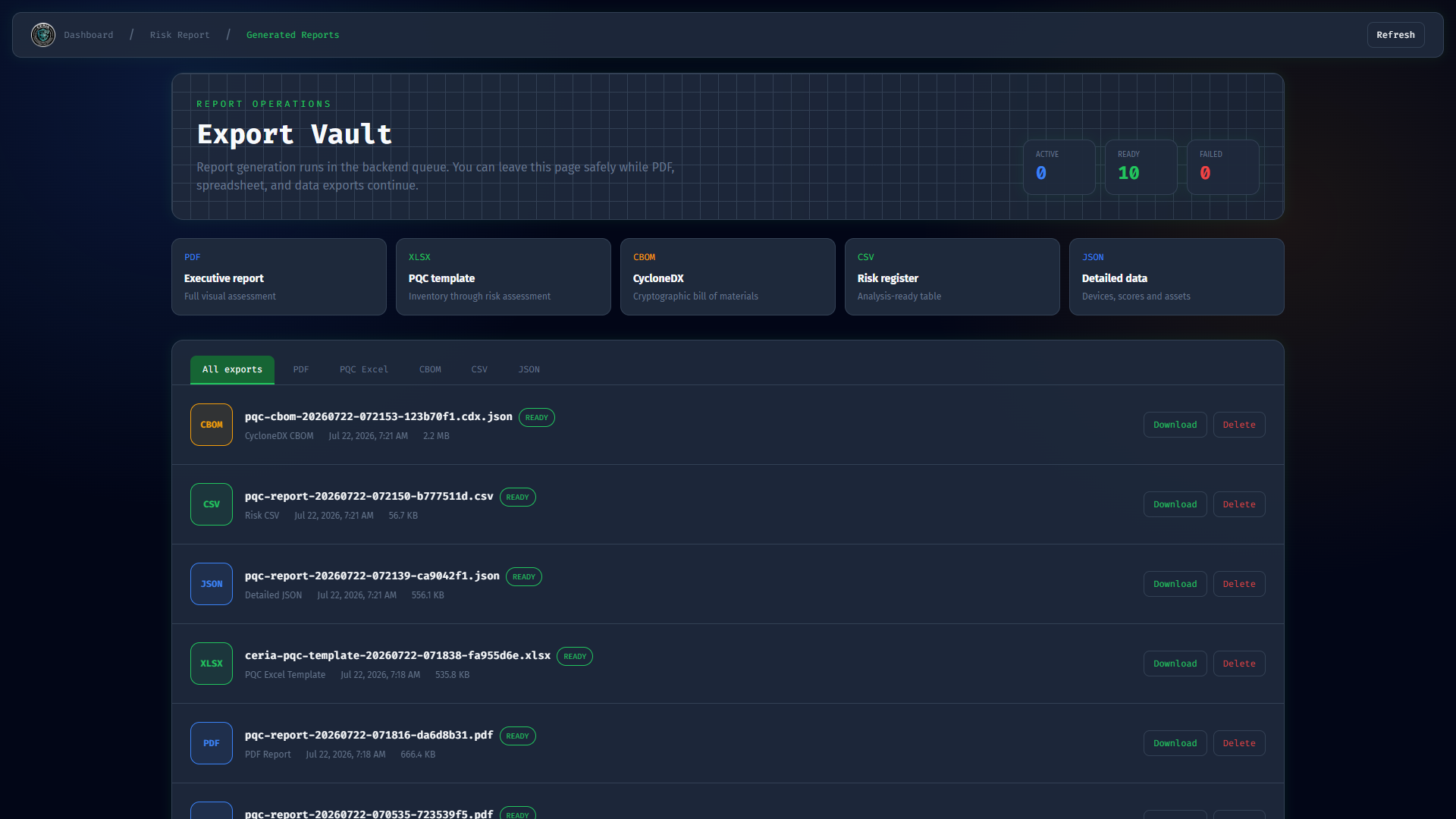

The /report-exports page lists all jobs with tabs by type. Active jobs show progress; completed jobs can be downloaded or deleted. PDF generation uses WeasyPrint, and PQC Excel generation populates the official workbook while preserving template formatting and reference content.

Scanning Features

Network Discovery

Uses nmap for:

• Host discovery (ping sweep)
• OS fingerprinting
• Port scanning
• Service version detection

Scanning Modes

1. Quick Scan

• Basic nmap scan
• TLS/SSH banner grabbing
• Certificate extraction

2. Deep Scan

• Full sslyze analysis
• SSH algorithm enumeration (ssh-audit)
• IKE probing for VPNs
• Certificate chain extraction

3. Credential-based Scan

• OS crypto store analysis
• Application config extraction
• Certificate store enumeration

Port Coverage

Default ports scanned:

SSH: 22, 2222
TLS/HTTPS: 443, 8443, 4443, 993, 995, 990, 636, 3269, 8080, 9090
VPN: 500, 4500, 1194, 1723
Database: 5432, 1433, 3306, 1521, 27017, 6379, 9042
Mail: 143, 993, 110, 995, 25, 465, 587
LDAP/Kerberos: 389, 636, 88, 3268, 3269
RDP/VNC: 3389, 5900, 5901
SMB: 135, 139, 445
DNS: 53
Docker/K8s: 2375, 2376, 6443, 10250, 10255
Monitoring: 9090, 3000, 9100
MQTT: 1883, 8883
Redis/Memcached: 6379, 11211
Elasticsearch: 9200, 9300
RabbitMQ: 5672, 15672
Zookeeper: 2181
Cassandra: 9042, 9160
MongoDB: 27017, 27018

Add custom ports in Settings page (supports ranges like 9000-9010).

Cryptographic Collectors

1. TLS/SSL Collector

• TLS versions (1.0, 1.1, 1.2, 1.3)
• Cipher suites (quantum-vulnerable vs PQC-ready)
• Certificate chains
• Weak signatures (MD5, SHA-1)
• Hybrid certificates (PQC + Traditional)

{
  "port": 443,
  "tls_version": "TLSv1.2",
  "cipher_suite": "ECDHE_RSA_WITH_AES_256_GCM_SHA384",
  "certificate_info": {...},
  "chain_analysis": {...},
  "confidence": 0.95
}

2. SSH Collector

• Key algorithms (RSA, ECDSA, Ed25519)
• KEX algorithms
• MAC algorithms
• Weak curves (secp192, secp224)
• Deprecated algorithms (ssh-rsa, diffie-hellman-group1-sha1)

• Banner analysis: 0.8
• Full ssh-audit: 0.95
• Weak curve detection: 0.9

3. VPN Collector

• IKE version (v1, v2)
• Transform proposals
• DH groups
• Authentication methods

4. Database Collector

• Transparent Data Encryption (TDE) status
• Connection encryption
• SSL/TLS configuration

5. OS Crypto Collector

• System certificate stores
• Trusted root CAs
• Installed certificates
• Key stores

6. App Config Collector

• Crypto config files (OpenSSL, Java keystores)
• Algorithm configurations
• Protocol settings

7. Certificate Store Collector

• Certificate files (.pem, .crt, .p12)
• Trust stores
• Private key files

Risk Scoring (SCAD Framework)

The SCAD (System Cryptographic Asset Demand) Framework uses 7 criteria with adjustable weights (must sum to 100%):

Criteria Descriptions

Priority Levels

Adjusting Weights

1. Go to Settings page
2. Modify criterion weights (must sum to 100%)
3. Click Save
4. Re-run scan to apply new weights

HNDL Risk Calculator

Harvest Now, Decrypt Later (HNDL)

Implements Mosca's Inequality: X + Y > Z

Where:

• X = Years data must remain secret (Data Lifespan)
• Y = Years to migrate to PQC (Migration Time)
• Z = Years until quantum computers break current crypto (Q-Day estimate)

Risk Levels

Setting Data Retention

1. Go to Inventory → Select Device
2. Click Edit on tiering section
3. Set Data Retention (Years)
4. Save changes

HNDL risk auto-recalculates.

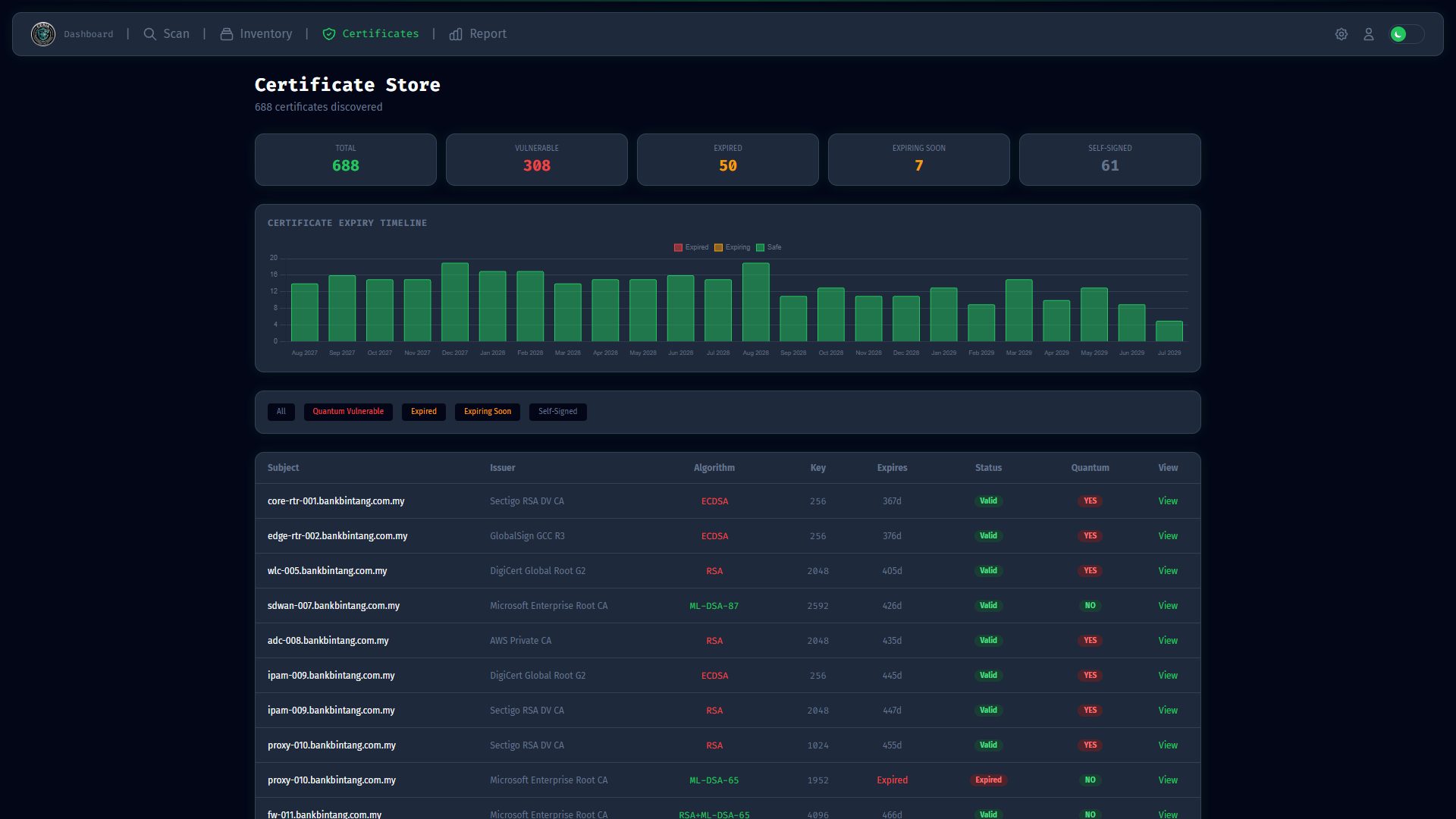

Certificate Management

Certificate Discovery

Automatically extracts and stores:

• Leaf certificates
• Intermediate CAs
• Root CAs
• Chain relationships

Certificate Analysis

For each certificate:

• PQC Status: Ready / Vulnerable / Transitioning
• Algorithm: RSA, ECDSA, Ed25519, ML-DSA, etc.
• Key Size: 2048, 4096, P-256, P-384, etc.
• Signature: SHA-256, SHA-384, SHA-1 (weak)
• Expiry: Days remaining
• CA Roadmap: Vendor's PQC transition plan

Chain Analysis

Root CA (PQC Status)
  ↓ trusts
Intermediate CA (PQC Status, Hybrid?)
  ↓ issues
Leaf Certificate (PQC Status, Algorithm)

Chain risk based on weakest link.

CA Roadmap Database

Tracks vendor PQC readiness:

• DigiCert
• Let's Encrypt
• Sectigo
• GlobalSign
• Entrust
• AWS ACM
• Azure Key Vault
• Google Trust Services

Download Certificates

From certificate detail page:

• PEM format: Full chain
• Individual: Leaf only

Compliance & Reporting

MySEAL Compliance

Malaysia's MySEAL (Malaysia Security Evaluation and Assurance Lab) approved algorithms.

• Approved encryption algorithms
• Approved signature algorithms
• Key size compliance
• Random number generation

• Compliance status per device
• Non-compliant algorithms list
• Recommendations for compliance

MyKriptografi NCII

Malaysia NCII (National Critical Information Infrastructure) requirements.

• 2030: Symmetric crypto migration
• 2035: Asymmetric crypto migration

Schedule Re-Scans

1. Go to Settings
2. Under Automatic Re-Scan:

• Enable scheduled scans
• Select frequency: Daily, Weekly, Monthly, Quarterly
• Set scan time

1. Save settings

Drift Detection

Compares scan results over time:

• Algorithm changes
• Cipher suite changes
• Certificate changes
• New vulnerabilities

Alerts for:

• Cryptographic Drift: Algorithm/cipher changes
• Expiry Warnings: Certificate expiring <30 days
• New Vulnerabilities: CVE detection

Migration Planning

Migration Advisor

Analyzes crypto patterns and provides step-by-step migration plans for:

Patterns Supported

Migration Plan Structure

For each pattern:

1. Current State: What was detected
2. Target State: PQC-ready replacement
3. Migration Steps: Numbered procedures
4. Caveats: Known issues or blockers
5. Rollback: How to revert if needed
6. Resources: Official docs and guides

Critical Path Analysis

Identifies migration order:

1. Root CAs (highest priority)
2. Intermediate CAs
3. Leaf certificates
4. Device configurations

Dependencies visualized as G6 graph with risk-based coloring.

API Reference

Authentication Endpoints

POST /api/v1/auth/login
Content-Type: application/json

{
  "username": "admin",
  "password": "password"
}

Response:
{
  "status": "ok",
  "token": "eyJhbGciOiJIUzI1NiIs...",
  "user": {
    "id": 1,
    "username": "admin",
    "role": "admin"
  }
}

Scan Endpoints

# Start scan
POST /api/v1/scans/start
Authorization: Bearer <token>
Content-Type: application/json

{
  "target_range": "192.168.1.0/24",
  "session_name": "Test Scan",
  "collectors": ["tls", "ssh"]
}

# Get scan status
GET /api/v1/scans/{session_id}/status

# Get scan results
GET /api/v1/scans/{session_id}/results

# Get scan log
GET /api/v1/scans/{session_id}/log

Device Endpoints

# List devices
GET /api/v1/devices

# Get device details
GET /api/v1/devices/{device_id}

# Update device tiering
PUT /api/v1/devices/{device_id}/tiering
Content-Type: application/json

{
  "tier": "critical",
  "data_retention_years": 10,
  "criticality": "high"
}

# Get device assets
GET /api/v1/devices/{device_id}/assets

# Get score history
GET /api/v1/devices/{device_id}/score-history

Certificate Endpoints

# List certificates
GET /api/v1/certificates

# Get certificate details
GET /api/v1/certificates/{cert_id}

# Download certificate
GET /api/v1/certificates/{cert_id}/download

# Get certificate chain
GET /api/v1/certificates/{cert_id}/chain

Visualization Endpoints

# Network topology (G6 format)
GET /api/v1/devices/network-topology

# Risk heatmap data
GET /api/v1/devices/risk-heatmap

# Expiry timeline
GET /api/v1/devices/expiry-timeline

# Certificate chain graph
GET /api/v1/certificates/graph

Settings Endpoints

# Get settings
GET /api/v1/settings

# Update settings
PUT /api/v1/settings
Content-Type: application/json

{
  "scan_rate_limit": "10",
  "default_scan_timeout": "300"
}

# Get scoring weights
GET /api/v1/scoring/weights

# Update weights
PUT /api/v1/scoring/weights
Content-Type: application/json

{
  "data_lifespan": "20",
  "algorithm_vulnerability": "25",
  "key_size": "15",
  "system_criticality": "15",
  "legacy_status": "10",
  "third_party_dependency": "10",
  "ncii_sector": "5"
}

Troubleshooting

Common Issues

1. Port Permission Denied (macOS/Linux)

# macOS
sudo ceria dashboard --port 80

# Linux (CAP_NET_BIND_SERVICE)
sudo setcap cap_net_bind_service=+ep $(which python)

2. Nmap Not Found

# Install nmap
# Ubuntu/Debian
sudo apt-get install nmap

# macOS
brew install nmap

# Windows
choco install nmap

3. Database Connection Issues

# Check database permissions
ls -la pqcs.db
chmod 644 pqcs.db

# Or use absolute path
DATABASE_URL=sqlite:////home/user/db/pqcs.db ceria dashboard

4. SSH Connection Failures

• Verify SSH credentials in Settings
• Check SSH host key is known (~/.ssh/known_hosts)
• Verify firewall allows SSH (port 22)
• Check SSH user has sudo/admin rights for collectors

5. Certificate Parsing Errors

Some certificates may fail to parse due to:

• Non-standard formats
• Corrupted PEM data
• Unusual extensions

These are logged but don't stop the scan.

Log Locations

Debug Mode

# Enable debug logging
pqcs --verbose dashboard

# Or set environment variable
export LOG_LEVEL=DEBUG
ceria dashboard

Security Considerations

Credential Storage

• SSH passwords stored encrypted in database
• SSH keys can be used instead of passwords
• API tokens (JWT) expire after 24 hours

Network Security

• Scanner uses standard ports only
• No exploitable services exposed
• All scan data stored locally

Data Protection

• Database contains sensitive crypto info
• Use strong SECRET_KEY
• Restrict database file permissions
• Enable HTTPS for web dashboard

Advanced Topics

Custom Collectors

Create new collectors by extending BaseCollector:

from pqcs.scanner.collectors.base import BaseCollector

class MyCollector(BaseCollector):
    asset_type = "myprotocol"

    def collect(self, device: Device) -> list[dict]:
        assets = []
        # Your scanning logic here
        if self._port_is_open(device, 1234):
            assets.append({
                "port": 1234,
                "asset_type": "myprotocol",
                "protocol_version": "1.0",
                "algorithm": "RSA-2048",
            })
        return assets

Custom Scoring

Modify criteria.py to add new algorithm checks.

API Integration

Use the REST API to integrate with external systems:

import requests

# Login
r = requests.post("https://pqcs/api/v1/auth/login", json={
    "username": "admin",
    "password": "password"
})
token = r.json()["token"]

# Start scan
requests.post("/api/v1/scans/start",
    headers={"Authorization": f"Bearer {token}"},
    json={"target_range": "10.0.0.0/24"}
)

Development

Running Tests

pytest tests/
pytest tests/ -v  # verbose
pytest tests/test_scoring.py  # specific test

Code Style

# Lint
ruff check pqcs/

# Format
ruff format pqcs/

# Type check
mypy pqcs/

Project Structure

pqcs/
├── __init__.py
├── __main__.py          # Entry point
├── cli.py               # CLI commands
├── config.py            # Configuration
├── db.py                # Database models
├── web/                 # Web dashboard
│   ├── app.py           # FastAPI app
│   ├── routes.py        # API routes
│   ├── middleware.py    # Auth & rate limiting
│   └── templates/       # HTML templates
├── scanner/             # Scanning engine
│   ├── engine.py        # Orchestrator
│   ├── network_discovery.py
│   ├── runner.py        # Web scan runner
│   └── collectors/      # Crypto collectors
├── scoring/             # Risk scoring
│   ├── engine.py
│   ├── criteria.py      # Algorithm DB
│   └── hndl_calculator.py
├── analysis/            # Analysis tools
│   ├── migration_advisor.py
│   └── dependency_graph.py
├── compliance/          # Compliance checking
│   └── myseal.py
└── reporting/           # Export formats
    ├── csv_export.py
    ├── json_export.py
    ├── pdf_export.py
    └── template_export.py

License

MIT License - See LICENSE file

Support

For issues, feature requests, or questions:

• Check troubleshooting section above
• Review AGENTS.md for development context
• Open an issue in the repository

Web Dashboard

Access

http://localhost:8080 (local)
https://pqcs.dysfunktion.tech (deployed)

Pages

Public Pages

Page	URL	Description	Screenshot
Login	/login	JWT authentication

Protected Pages

Dashboard Overview

The main dashboard provides a comprehensive view of your network's PQC readiness:

Scan Configuration

Configure and start network scans from the Scan Control page:

Device Management

View all discovered devices in the Inventory:

Device Detail View

Deep dive into individual device analysis:

Certificate Management

Browse discovered certificates with PQC status:

Reports & Visualization

View risk heatmaps and compliance reports:

HNDL Risk Analysis

Access Mosca's Inequality calculator:

Settings & Configuration

Configure scanning parameters and scoring weights:

Risk Priority Dashboard

Monitor critical devices requiring immediate attention:

Navigation

Use the sidebar menu to navigate between pages. The dashboard shows:

• Total devices scanned
• Risk distribution (CRITICAL, HIGH, MEDIUM, LOW, MINIMAL)
• PQC readiness gauge
• Recent scan activity
• Network topology graph

Screenshots

See detailed screenshots in Screenshots Gallery

Quick preview:

• Dashboard - Main dashboard
• Scan Control - Scan configuration
• Device Inventory - Device list
• HNDL Risk Analysis - HNDL calculator

Large Inventory Navigation

Device Inventory and Device Risk Assessment paginate large device collections. Use the previous/next controls and page-size selector instead of loading every device into one table.

Exporting Reports

See complete export guide for formats, queue behavior, downloads, deletion, and troubleshooting.

On /report, select Export to and choose PDF, PQC Excel, CBOM, CSV, or JSON. CERIA queues the job and displays backend progress. Completion exposes a direct download link and success message.

Open Generated Reports at /report-exports to view all jobs. Tabs filter by type, active jobs show progress, and completed or failed jobs can be deleted.

Report Exports

Overview

CERIA generates reports through a persistent backend queue. Export requests continue if you leave the page, and completed files remain available from Generated Reports until they are deleted.

Open the Export Menu

1. Open /report.
2. Select Export to in the report header.
3. Choose the required format.

The report page immediately queues the export and shows live backend progress. A successful job displays its unique filename and a download action.

Export Formats

Generated Reports

Open /report-exports or select Generated Reports from the report page.

The page provides:

• Tabs for all exports, PDF, PQC Excel, CBOM, CSV, and JSON.
• Live progress for queued and processing jobs.
• Success and failure status messages.
• Unique timestamp and UUID-based filenames.
• Download actions for completed reports.
• Delete actions for completed or failed jobs.

Active jobs cannot be deleted. CERIA returns a conflict response until generation completes or fails.

Job Lifecycle

Queued -> Processing -> Completed
                    -> Failed

Job metadata is stored in the database. Files are written safely through a temporary .part file and moved into place only when complete. On startup, CERIA recovers queued jobs and reconciles interrupted work.

API Workflow

Queue an export:

POST /api/v1/reports/exports
Content-Type: application/json

{"export_type": "pdf"}

Monitor and manage it:

GET /api/v1/reports/exports
GET /api/v1/reports/exports/{job_id}
GET /api/v1/reports/exports/{job_id}/download
DELETE /api/v1/reports/exports/{job_id}

PDF Export

PDF generation uses WeasyPrint and a dedicated print layout. The report contains the current assessment details, visual summaries, risk information, migration context, and device-level findings without requiring browser rendering.

PQC Excel Export

PQC Excel generation uses docs/PQC Template.xlsx and preserves the template structure and formatting. The operational sheets are populated with:

1. Project and assessment information.
2. Enterprise asset inventory.
3. Cryptographic discovery results.
4. Device risk assessment data.

Troubleshooting

• Confirm the application account can write to outputs/reports.
• Confirm WeasyPrint and its required platform libraries are installed for PDF generation.
• Confirm docs/PQC Template.xlsx exists for PQC Excel generation.
• Review the failure message shown in Generated Reports.
• Restart CERIA to recover jobs that remain queued after an interrupted shutdown.

CLI Usage

Global Options

ceria [OPTIONS] COMMAND [ARGS]...

Options:
  --db-url TEXT       Database URL (env: DATABASE_URL)
  --verbose, -v       Enable debug logging
  --version           Show version
  --help              Show help

Commands

1. Scan Network

# Basic scan
ceria scan 192.168.1.0/24

# Named scan
ceria scan 192.168.1.0/24 --name "Production Network Scan"

# Specific collectors only
ceria scan 192.168.1.0/24 --collectors tls,ssh,vpn

# All available collectors
ceria scan 192.168.1.0/24 --collectors tls,ssh,vpn,db,os_crypto,app_config,cert_store

• tls - TLS/SSL certificates and cipher suites
• ssh - SSH algorithms and host keys
• vpn - VPN/IKE configuration
• db - Database encryption (TDE)
• os_crypto - OS certificate stores
• app_config - Application crypto configs
• cert_store - Certificate stores

Sample scan output in terminal:

[2026-07-22 10:00:01] INFO: Starting scan: My First Scan
[2026-07-22 10:00:05] INFO: Port scan: Found 24 hosts
[2026-07-22 10:00:12] INFO: TLS collector: 15 certificates collected
[2026-07-22 10:00:18] INFO: SSH collector: 8 SSH servers found
[2026-07-22 10:00:25] INFO: Cert collector: 22 certificates discovered
[2026-07-22 10:00:30] INFO: Scan completed in 29.4s

2. Network Discovery

# Discover hosts without full crypto scan
ceria discover 192.168.1.0/24 --ports 22,443,8443

3. Generate Reports

# Table format (console)
ceria report --session 1 --format table

# Filter by priority
ceria report --session 1 --priority CRITICAL --format table

# Export to CSV
ceria report --session 1 --format csv --output report.csv

# Export to JSON
ceria report --session 1 --format json --output report.json

# Export to PDF
ceria report --session 1 --format pdf --output report.pdf

# Export CBOM (CycloneDX)
ceria report --session 1 --format cbom --output cbom.json

Sample table output:

IP Address    | Hostname    | Priority  | Algorithms
--------------+-------------+-----------+------------------
192.168.1.10  | web-server  | CRITICAL  | RSA-1024
192.168.1.20  | mail-server | HIGH      | RSA-2048, SHA-1
192.168.1.30  | db-server   | MEDIUM    | RSA-2048

4. List Sessions

ceria sessions

Output:

ID  | Name                    | Status     | Devices | Started
----+-------------------------+------------+---------+-------------------
1   | My First Scan           | completed  | 24      | 2026-07-22 10:00
2   | Production Network Scan | running    | 12      | 2026-07-22 11:30

5. Launch Dashboard

# Default port 8080
ceria dashboard

# Custom port
ceria dashboard --port 3000 --host 127.0.0.1

Opens web interface at http://localhost:8080 (or your specified port).

Enterprise Demo Data

ceria demo-data --count 500 --snapshots 4 --seed 20260722

This creates a timestamped SQLite backup before replacing scan-domain records. Use --append to retain scan data, --backup-dir to choose the backup location, and --seed to reproduce a dataset.

Scanning Features

Network Discovery

CERIA uses nmap for initial host discovery:

Discovery Methods

• ARP scan (local network)
• ICMP echo (ping sweep)
• TCP SYN (port probing)
• OS fingerprinting

Port Scanning

Default ports include:

• SSH: 22, 2222
• TLS/HTTPS: 443, 8443, 8080
• VPN: 500, 4500, 1194
• Database: 5432, 1433, 3306
• Mail: 993, 995, 465
• Plus 50+ more

Custom Ports

Add custom ports in Settings:

Format: ports or ranges
Example: 9000,9001,9002-9010,10000

Scanning Modes

Quick Scan

• Basic nmap discovery
• TLS/SSH banner analysis
• Certificate extraction
• Duration: 2-5 minutes

Deep Scan

• Full sslyze analysis
• SSH algorithm enumeration
• IKE probing
• Certificate chain extraction
• Duration: 10-30 minutes

Credential-Based Scan

• OS certificate store enumeration
• Application config extraction
• System crypto settings

Scan Scheduling

Automated Re-scans

1. Go to Settings
2. Enable Automatic Re-scan
3. Select frequency:

• Daily - Every day
• Weekly - Selected day
• Monthly - Selected date
• Quarterly - Every 3 months

Drift Detection

Compares scan results over time:

• Algorithm changes
• Certificate updates
• New vulnerabilities
• Configuration drift

Alerts for significant changes.

Scan Performance

Network Size Recommendations

Tune via Settings page.

Demonstration Coverage

The generator creates network infrastructure, security appliances, servers, endpoints, cloud services, databases, operational technology, storage, identity, and communications devices. Findings cover all supported vendors and collector detection types, including vulnerable, transitional, and PQC-ready algorithms.

Risk Scoring

The SCAD (System Cryptographic Asset Demand) Framework uses 7 criteria with adjustable weights (must sum to 100%).

Dashboard View

Configuring Weights

Criteria Descriptions

Priority Levels

Adjusting Weights

1. Go to Settings page
2. Modify criterion weights (must sum to 100%)
3. Click Save
4. Re-run scan to apply new weights

Industry-Specific Configurations

Financial Services

Algorithm Vulnerability: 30%
Data Lifespan: 25%
System Criticality: 20%
Key Size: 10%
Legacy Status: 5%
Third Party: 5%
NCII Sector: 5%

Healthcare

Data Lifespan: 35%
Algorithm Vulnerability: 25%
System Criticality: 15%
Key Size: 10%
Legacy Status: 5%
Third Party: 5%
NCII Sector: 5%

See Screenshots Gallery for more views.

Demo Risk Distribution

Demo datasets distribute SCAD scores and priorities across the supported range. HNDL values come from varied retention, migration, and quantum-timeline inputs, so devices do not receive identical severity scores.

HNDL Calculator

HNDL Overview Dashboard

Mosca's Inequality

Implements Mosca's Inequality: X + Y > Z

Where:

• X = Years data must remain secret (Data Lifespan)
• Y = Years to migrate to PQC (Migration Time)
• Z = Years until quantum computers break current crypto (Q-Day estimate)

Device-Level HNDL Analysis

Risk Levels

Setting Data Retention

1. Go to Inventory → Select Device
2. Click Edit on tiering section
3. Set Data Retention (Years)
4. Save changes

HNDL risk auto-recalculates when you update the value.

Examples

Critical Risk Example

Data Retention: 15 years (medical records)
Migration Time: 2 years
Quantum Timeline: 10 years (2035 estimate)

X + Y = 17 > Z = 10
Result: CRITICAL - Data needs protection beyond quantum capability

Low Risk Example

Data Retention: 1 year (temporary cache)
Migration Time: 2 years
Quantum Timeline: 10 years

X + Y = 3 < Z = 10
Result: MINIMAL - Data expires before quantum threat

See Screenshots Gallery for more visuals.

HNDL in Demo Assessments

Seeded datasets include CRITICAL, HIGH, MODERATE, LOW, and MINIMAL HNDL outcomes. Each device retains its own input values and calculated years until exposure.

Certificate Management

Certificate Discovery

Automatically extracts and stores X.509 certificates from:

• TLS handshake (port 443, 8443, etc.)
• Certificate files (.pem, .crt, .cer)
• System certificate stores

Certificate Analysis

For each certificate, CERIA analyzes:

Basic Properties

• Subject/Issuer DN
• Serial number
• Validity period
• Days until expiry

Algorithm Assessment

Signature Analysis

• SHA-256 ✅ Good
• SHA-384 ✅ Good
• SHA-1 ⚠️ Weak (deprecated)
• MD5 ❌ Broken (rejected)

Chain Analysis

Root CA (ISRG Root X1)
  └── Intermediate (R3)
       └── Leaf (example.com)

Each level assessed for:

• PQC readiness status
• Hybrid certificate detection
• CA roadmap alignment

CA Roadmap Database

Tracks vendor PQC transition plans:

Certificate Actions

Download

• PEM format - Full chain
• Individual - Single certificate
• Chain - CA bundle

Expiry Alerts

• 90 days (notice)
• 60 days (warning)
• 30 days (critical)

PQC Assessment Report

• Certificates by PQC status
• Expiry timeline
• Migration priority
• Replacement recommendations

Compliance

MySEAL Compliance

MySEAL Approved Algorithms

Encryption

• AES-128, AES-192, AES-256 (GCM, CBC)
• ChaCha20-Poly1305

Digital Signatures

• RSA-2048+ (transitional)
• ECDSA P-256+ (transitional)
• Ed25519, Ed448 (recommended)
• ML-DSA (PQC-ready)

Key Exchange

• ECDH (transitional)
• X25519, X448 (recommended)
• ML-KEM (PQC-ready)

MySEAL Compliance Check

CERIA checks devices against MySEAL approved algorithms and flags non-compliant crypto.

MyKriptografi NCII Framework

Malaysia's National Critical Information Infrastructure (NCII) requirements for Post-Quantum Cryptography.

PQC Transition Timeline

NCII Sectors

Priority weighting based on sector:

Compliance Report

Generated report includes:

• Overall compliance percentage
• Non-compliant algorithm list
• Priority remediation list
• Timeline recommendations

NACSA Alignment

National Cyber Security Agency (NACSA) guidelines:

1. Crypto Inventory ✅ - Automated discovery
2. Risk Assessment ✅ - SCAD scoring
3. Migration Plan ✅ - Priority-based roadmap
4. Progress Tracking ✅ - Scheduled re-scans

Export Formats

CBOM (CycloneDX)

• Vendor assessment
• Audit trails
• Compliance documentation

NACSA XML (Future)

PQC Excel Assessment Export

The PQC Excel export populates the official workbook without replacing template formatting or references. Its first four operational sheets cover project details, asset inventory, cryptographic discovery, and risk assessment.

Migration Planning

Migration Advisor

CERIA analyzes crypto patterns and generates step-by-step migration plans.

Detected Patterns

Common cryptographic configurations requiring migration:

Migration Plan Structure

Each migration plan includes:

1. Current State

• What is currently deployed
• Why it's vulnerable
• Risk assessment

2. Target State

• Recommended replacement
• Algorithm rationale
• Compatibility considerations

3. Migration Steps

1. Generate new key pair
2. Create CSR with new algorithm
3. Obtain PQC-ready certificate
4. Configure service to use new cert
5. Test connectivity
6. Schedule cutover

4. Caveats & Risks

• Larger certificate sizes
• Increased handshake latency
• Client compatibility concerns

5. Rollback Procedure

6. Resources

• Official documentation links
• Vendor guides
• NIST recommendations

Dependency Graph

Visualize migration dependencies:

Root CA must migrate first
  → Intermediate CAs
    → Leaf certificates
      → Device configurations

Critical Path Analysis

Identifies the order in which to migrate:

1. Root CAs (blocks everything)
2. Intermediate CAs (blocks leaf certs)
3. High-risk devices (SCAD priority)
4. Remaining devices (by tier)

Migration Tracking

Per-device migration status:

Update status in device detail page.

Migration Timeline

Recommended timeline based on HNDL risk:

Exporting Migration Evidence

Use PDF for the executive assessment, PQC Excel for the migration workbook, CBOM for machine-readable cryptographic inventory, CSV for risk-register analysis, and JSON for complete device and asset details.

API Reference

Authentication

All API endpoints require a JWT token except for /api/v1/auth/login and /api/v1/auth/register.

Login

POST /api/v1/auth/login
Content-Type: application/json

{
  "username": "string",
  "password": "string"
}

{
  "status": "ok",
  "token": "eyJhbGciOiJIUzI1NiIs...",
  "user": {
    "id": 1,
    "username": "admin",
    "role": "admin"
  }
}

• 401 - Invalid credentials
• 403 - Account disabled

Get Current User

GET /api/v1/auth/me
Authorization: Bearer <token>

Scans

Start New Scan

POST /api/v1/scans/start
Authorization: Bearer <token>
Content-Type: application/json

{
  "target_range": "192.168.1.0/24",
  "session_name": "Production Scan",
  "collectors": ["tls", "ssh", "vpn"]
}

{
  "status": "ok",
  "session_id": 1
}

Get Scan Status

GET /api/v1/scans/{session_id}/status
Authorization: Bearer <token>

{
  "session_id": 1,
  "status": "running",
  "progress": {
    "phase": "collecting",
    "current_device": "5 of 10",
    "collector": "tls"
  },
  "log": [
    {"time": "10:00:01", "level": "info", "message": "Starting scan..."},
    {"time": "10:00:15", "level": "info", "message": "Found 10 hosts"}
  ]
}

Stop Scan

POST /api/v1/scans/{session_id}/stop
Authorization: Bearer <token>

Get Scan Results

GET /api/v1/scans/{session_id}/results
Authorization: Bearer <token>

List All Scan Sessions

GET /api/v1/scans
Authorization: Bearer <token>

Devices

List All Devices

GET /api/v1/devices
Authorization: Bearer <token>

• scan_session_id - Filter by scan
• tier - Filter by tier (critical, high, medium, low)
• page - Page number (default: 1)
• page_size - Items per page (default: 50)

{
  "items": [
    {
      "id": 1,
      "ip_address": "192.168.1.10",
      "hostname": "server01",
      "os_fingerprint": "Linux 5.4",
      "tier": "critical",
      "open_ports": [{"port": 22, "service": "ssh"}, {"port": 443, "service": "https"}],
      "risk_score": {
        "overall": 85.5,
        "priority_label": "CRITICAL"
      },
      "hndl": {
        "risk_level": "HIGH",
        "years_until_exposure": 3.5
      }
    }
  ],
  "total": 42,
  "page": 1,
  "page_size": 50
}

Get Device Details

GET /api/v1/devices/{device_id}
Authorization: Bearer <token>

Update Device Tiering

PUT /api/v1/devices/{device_id}/tiering
Authorization: Bearer <token>
Content-Type: application/json

{
  "tier": "critical",
  "data_retention_years": 10,
  "system_criticality": "high",
  "migration_notes": "Business critical payment gateway"
}

Get Device Assets

GET /api/v1/devices/{device_id}/assets
Authorization: Bearer <token>

Get Device Score History

GET /api/v1/devices/{device_id}/score-history
Authorization: Bearer <token>

Certificates

List Certificates

GET /api/v1/certificates
Authorization: Bearer <token>

• device_id - Filter by device
• is_expired - true/false
• pqc_status - ready, vulnerable, hybrid

Get Certificate Details

GET /api/v1/certificates/{cert_id}
Authorization: Bearer <token>

{
  "id": 1,
  "subject": "CN=example.com",
  "issuer": "CN=Let's Encrypt R3",
  "serial_number": "00:01:02:...",
  "valid_from": "2024-01-01T00:00:00",
  "valid_until": "2024-12-31T23:59:59",
  "days_remaining": 180,
  "algorithm": "ECDSA P-256",
  "signature_hash": "SHA256",
  "pqc_status": "vulnerable",
  "is_hybrid": false,
  "has_weak_signature": false,
  "chain_analysis": {
    "root_ca": "ISRG Root X1",
    "root_pqc_status": "transitioning",
    "intermediate_ca": "R3",
    "intermediate_pqc_status": "transitioning",
    "chain_trust": "trusted",
    "chain_risk_score": 25
  },
  "pem_data": "-----BEGIN CERTIFICATE-----\nMIIDXTCCAkWg..."
}

Download Certificate

GET /api/v1/certificates/{cert_id}/download
Authorization: Bearer <token>

Get Certificate Chain

GET /api/v1/certificates/{cert_id}/chain
Authorization: Bearer <token>

Risk Scoring

Get Scoring Weights

GET /api/v1/scoring/weights
Authorization: Bearer <token>

{
  "data_lifespan": 20,
  "algorithm_vulnerability": 25,
  "key_size": 15,
  "system_criticality": 15,
  "legacy_status": 10,
  "third_party_dependency": 10,
  "ncii_sector": 5,
  "total": 100
}

Update Scoring Weights

PUT /api/v1/scoring/weights
Authorization: Bearer <token>
Content-Type: application/json

{
  "data_lifespan": 25,
  "algorithm_vulnerability": 20,
  "key_size": 15,
  "system_criticality": 15,
  "legacy_status": 10,
  "third_party_dependency": 10,
  "ncii_sector": 5
}

Note: Weights must sum to exactly 100.

HNDL (Harvest Now Decrypt Later)

Get HNDL Risk Calculation

POST /api/v1/hndl/calculate
Authorization: Bearer <token>
Content-Type: application/json

{
  "data_retention_years": 10,
  "migration_years": 2
}

{
  "hndl_risk_level": "HIGH",
  "years_until_exposure": 12,
  "risk_factors": {
    "data_retention": 10,
    "migration_time": 2,
    "quantum_timeline": 10,
    "mosca_inequality": "X + Y > Z (CRITICAL)"
  },
  "recommendations": [
    "Immediate migration recommended",
    "Current algorithms will be broken before data expires"
  ]
}

Compliance

MySEAL Compliance Check

GET /api/v1/compliance/myseal
Authorization: Bearer <token>

MyKriptografi NCII Report

GET /api/v1/compliance/ncii-report
Authorization: Bearer <token>

Migration

Get Migration Recommendation

GET /api/v1/devices/{device_id}/migration
Authorization: Bearer <token>

{
  "detected_patterns": ["rsa-2048-tls", "ssh-rsa-deprecated"],
  "recommendations": [
    {
      "pattern": "rsa-2048-tls",
      "current_state": "RSA-2048 for TLS authentication",
      "target_state": "ML-KEM/ML-DSA or X25519/Ed25519",
      "migration_steps": [
        "1. Generate new PQC key pair",
        "2. Install hybrid certificate",
        "3. Update TLS configuration"
      ],
      "caveats": ["Hybrid certificates may increase handshake size"],
      "resources": ["https://csrc.nist.gov/pqc-standardization"]
    }
  ]
}

Analytics & Visualization

Network Topology

GET /api/v1/analytics/topology
Authorization: Bearer <token>

{
  "nodes": [
    {"id": "device_1", "type": "device", "label": "192.168.1.10", "risk": 85},
    {"id": "cert_1", "type": "certificate", "label": "CN=example.com"}
  ],
  "edges": [
    {"source": "device_1", "target": "cert_1", "type": "uses"}
  ]
}

Risk Heatmap Data

GET /api/v1/analytics/risk-heatmap
Authorization: Bearer <token>

Certificate Expiry Timeline

GET /api/v1/analytics/expiry-timeline
Authorization: Bearer <token>

PQC Readiness Gauge

GET /api/v1/analytics/pqc-readiness
Authorization: Bearer <token>

{
  "total_devices": 100,
  "ready": 15,
  "transitioning": 35,
  "vulnerable": 50,
  "percentage_ready": 15
}

Settings

Get All Settings

GET /api/v1/settings
Authorization: Bearer <token>

Update Setting

PUT /api/v1/settings/{key}
Authorization: Bearer <token>
Content-Type: application/json

{
  "value": "new_value"
}

Common Settings

Export

Exports are asynchronous. Queue a job, poll its status, then use its download_url when it reaches completed.

List Export Types

GET /api/v1/reports/exports/types
Authorization: Bearer <token>

Queue Export

POST /api/v1/reports/exports
Authorization: Bearer <token>
Content-Type: application/json

{"export_type": "pdf"}

Returns 202 Accepted with the persistent job record.

List and Filter Exports

GET /api/v1/reports/exports
GET /api/v1/reports/exports?export_type=pqc_excel
Authorization: Bearer <token>

Read Export Status

GET /api/v1/reports/exports/{job_id}
Authorization: Bearer <token>

Statuses are queued, processing, completed, and failed. Responses include progress, unique filename, timestamps, errors, and a download URL when ready.

Download Export

GET /api/v1/reports/exports/{job_id}/download
Authorization: Bearer <token>

Delete Export

DELETE /api/v1/reports/exports/{job_id}
Authorization: Bearer <token>

Queued or processing jobs return 409 Conflict and cannot be deleted.

User Management

Register User (Admin only)

POST /api/v1/auth/register
Authorization: Bearer <token>
Content-Type: application/json

{
  "username": "newuser",
  "password": "securepassword",
  "role": "user"
}

List Users (Admin only)

GET /api/v1/auth/users
Authorization: Bearer <token>

Update User (Admin only)

PUT /api/v1/auth/users/{user_id}
Authorization: Bearer <token>
Content-Type: application/json

{
  "role": "admin",
  "is_active": true
}

Delete User (Admin only)

DELETE /api/v1/auth/users/{user_id}
Authorization: Bearer <token>

Change Password

POST /api/v1/auth/change-password
Authorization: Bearer <token>
Content-Type: application/json

{
  "current_password": "oldpass",
  "new_password": "newpass"
}

Error Codes

Python Example

import requests

BASE_URL = "https://pqcs.dysfunktion.tech/api/v1"

# Login
resp = requests.post(f"{BASE_URL}/auth/login", json={
    "username": "admin",
    "password": "password"
})
token = resp.json()["token"]
headers = {"Authorization": f"Bearer {token}"}

# Start scan
resp = requests.post(
    f"{BASE_URL}/scans/start",
    headers=headers,
    json={"target_range": "10.0.0.0/24"}
)
session_id = resp.json()["session_id"]

# Wait for scan to complete
import time
while True:
    status = requests.get(
        f"{BASE_URL}/scans/{session_id}/status",
        headers=headers
    ).json()
    if status["status"] == "completed":
        break
    time.sleep(5)

# Get results
results = requests.get(
    f"{BASE_URL}/scans/{session_id}/results",
    headers=headers
).json()

# Export PDF
pdf = requests.get(
    f"{BASE_URL}/export/{session_id}?format=pdf",
    headers=headers
)
with open("report.pdf", "wb") as f:
    f.write(pdf.content)

cURL Examples

Full Scan Workflow

# 1. Login
TOKEN=$(curl -s -X POST https://pqcs/api/v1/auth/login \
  -H "Content-Type: application/json" \
  -d '{"username":"admin","password":"pass"}' | jq -r '.token')

# 2. Start scan
curl -X POST https://pqcs/api/v1/scans/start \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"target_range":"192.168.1.0/24"}'

# 3. Get devices
curl https://pqcs/api/v1/devices \
  -H "Authorization: Bearer $TOKEN" | jq

# 4. Export CSV
curl "https://pqcs/api/v1/export/1?format=csv" \
  -H "Authorization: Bearer $TOKEN" \
  -o report.csv

Last Updated: 2026-07-22

Administration Guide

Guide for administrators managing PQC Scanner in production environments.

Table of Contents

1. User Management
2. Scan Management
3. Database Administration
4. Configuration Management
5. Risk Scoring Configuration
6. Monitoring & Alerts
7. Maintenance Tasks
8. Backup & Recovery
9. Troubleshooting

User Management

Creating Users

Via Web Interface

1. Login as admin
2. Go to Profile page (/profile)
3. Click User Management
4. Click Add User
5. Fill in:

• Username
• Password (must be 8+ chars)
• Role (admin/user/viewer)

1. Save

Via CLI

# Interactive
pqcs user create

# Or programmatic (custom script)
python << 'EOF'
import bcrypt
from pqcs.db import init_db, User
from pqcs.config import AppConfig

config = AppConfig()
db = init_db(config.database.url)

pw_hash = bcrypt.hashpw(b"newpassword", bcrypt.gensalt())
user = User(
    username="newuser",
    password_hash=pw_hash.decode(),
    role="user",
    is_active=True
)
db.add(user)
db.commit()
print(f"Created user: {user.username}")
EOF

User Roles

Disabling Users

1. Go to Profile → User Management
2. Find user
3. Toggle Active switch to OFF
4. User can no longer login

Password Reset

# Via CLI
python << 'EOF'
import bcrypt
from pqcs.db import init_db, User
from pqcs.config import AppConfig

config = AppConfig()
db = init_db(config.database.url)

user = db.query(User).filter_by(username="user_to_reset").first()
if user:
    new_pw = bcrypt.hashpw(b"temppassword123", bcrypt.gensalt())
    user.password_hash = new_pw.decode()
    db.commit()
    print("Password reset to: temppassword123")
    print("User must change on next login")
EOF

Scan Management

Scheduling Scans

Via Web Settings

1. Go to Settings page
2. Scroll to Automatic Re-scan
3. Enable scheduled scans
4. Select frequency:

• Daily: Every day at set time
• Weekly: Selected day of week
• Monthly: Selected day of month
• Quarterly: Every 3 months

1. Set scan time (24h format)
2. Save settings

Via CLI

from pqcs.scheduler.scan_scheduler import ScanScheduler
from pqcs.config import AppConfig

config = AppConfig()
scheduler = ScanScheduler(config)

# Schedule daily scan
job = scheduler.schedule_scan(
    target_range="192.168.1.0/24",
    schedule_type="daily",
    name="Daily Network Scan"
)

# List scheduled jobs
jobs = scheduler.list_scheduled_scans()
for job in jobs:
    print(f"{job['id']}: {job['name']} - {job['schedule']}")

# Cancel schedule
scheduler.cancel_schedule(job_id=1)

Managing Running Scans

Check Scan Status

# Via CLI
ceria sessions

# Get specific scan status
curl http://localhost:8080/api/v1/scans/1/status \
  -H "Authorization: Bearer <token>"

Stop Running Scan

1. Go to Scan Detail page
2. Click Stop Scan button
3. Or via API:

curl -X POST http://localhost:8080/api/v1/scans/1/stop \
  -H "Authorization: Bearer <token>"

Delete Old Scans

# Via CLI script
python << 'EOF'
from pqcs.db import init_db, ScanSession
from pqcs.config import AppConfig
from datetime import datetime, timedelta

config = AppConfig()
db = init_db(config.database.url)

# Delete scans older than 90 days
cutoff = datetime.utcnow() - timedelta(days=90)
old_scans = db.query(ScanSession).filter(ScanSession.finished_at < cutoff).all()

for scan in old_scans:
    print(f"Deleting scan {scan.id}: {scan.name}")
    db.delete(scan)

db.commit()
print(f"Deleted {len(old_scans)} old scans")
EOF

Scan Optimization

Custom Ports

1. Go to Settings
2. Edit Custom Ports
3. Add ports (comma-separated or ranges):

   9000,9001,9002-9010,10000


4. Save

Scan Timeouts

Database Administration

Database Schema

Key tables:

• users - Authentication and roles
• scan_sessions - Scan metadata
• devices - Discovered network devices
• crypto_assets - Cryptographic findings
• certificates - X.509 certificates
• risk_scores - Calculated risk scores
• settings - Application configuration

Direct Database Access

# SQLite CLI
sqlite3 /var/lib/pqcs/pqcs.db

# Common queries
.tables
.schema devices
SELECT COUNT(*) FROM devices;
SELECT * FROM scan_sessions ORDER BY started_at DESC LIMIT 5;
.quit

Database Maintenance

Vacuum (SQLite)

# Reclaim space after deletions
sqlite3 /var/lib/pqcs/pqcs.db "VACUUM;"

Analyze (performance)

# Update query planner statistics
sqlite3 /var/lib/pqcs/pqcs.db "ANALYZE;"

Check Integrity

sqlite3 /var/lib/pqcs/pqcs.db "PRAGMA integrity_check;"

Migration to PostgreSQL (Advanced)

# Install PostgreSQL adapter
pip install psycopg2-binary

# Export SQLite
sqlite3 pqcs.db .dump > dump.sql

# Import to PostgreSQL
psql -U postgres -d pqcs < dump.sql

# Update DATABASE_URL
export DATABASE_URL="postgresql://user:pass@localhost/pqcs"

Configuration Management

Settings Storage

Settings stored in database table settings:

settings = {
    "scan_rate_limit": "5",
    "default_scan_timeout": "300",
    "nmap_args": "-sV -O -sS",
    "ssh_username": "",
    "ssh_password": "",
    "custom_ports": "",
}

Updating Settings

Via API

# Update single setting
curl -X PUT http://localhost:8080/api/v1/settings/scan_rate_limit \
  -H "Authorization: Bearer <token>" \
  -H "Content-Type: application/json" \
  -d '{"value": "10"}'

# Get all settings
curl http://localhost:8080/api/v1/settings \
  -H "Authorization: Bearer <token>"

Via Python

from pqcs.db import init_db, Setting
from pqcs.config import AppConfig

config = AppConfig()
db = init_db(config.database.url)

# Update setting
setting = db.query(Setting).filter_by(key="scan_rate_limit").first()
if setting:
    setting.value = "10"
else:
    setting = Setting(key="scan_rate_limit", value="10")
    db.add(setting)
db.commit()

Environment Variables Priority

Priority order (highest first):

1. Environment variables (.env)
2. Database settings
3. Default values in code

Risk Scoring Configuration

Understanding SCAD Weights

Default weights (must sum to 100%):

Adjusting for Industry

Financial Services

Algorithm Vulnerability: 30%
Data Lifespan: 25%
System Criticality: 20%
Key Size: 10%
Legacy Status: 5%
Third Party: 5%
NCII Sector: 5%

Healthcare

Data Lifespan: 35%
Algorithm Vulnerability: 25%
System Criticality: 15%
Key Size: 10%
Legacy Status: 5%
Third Party: 5%
NCII Sector: 5%

Recalculating Scores

After changing weights, rescore existing devices:

from pqcs.scoring.engine import ScoringEngine
from pqcs.db import init_db, Device
from pqcs.config import AppConfig

config = AppConfig()
db = init_db(config.database.url)
scoring = ScoringEngine(config.scoring, config.ncii_sector)

devices = db.query(Device).all()
for device in devices:
    score = scoring.calculate(device, device.assets)
    # Update score in database
    print(f"Rescored {device.ip_address}: {score.overall_score}")

db.commit()

Monitoring & Alerts

Health Check

# Basic health check
curl http://localhost:8080/health

# Expected response:
{
  "status": "ok",
  "timestamp": "2026-07-22T12:00:00",
  "version": "0.1.0",
  "database": "connected"
}

Log Monitoring

Important Log Entries

Log Rotation

# Add to /etc/logrotate.d/pqcs
/opt/pqcs/logs/*.log {
    daily
    rotate 30
    compress
    delaycompress
    missingok
    notifempty
    create 644 pqcs pqcs
}

Setting Up Alerts

Email Notifications

# In settings
alert_email = "admin@example.com"
alert_events = ["scan_failed", "high_priority_device", "certificate_expiring"]

Slack Notifications

# Custom webhook
slack_webhook = "https://hooks.slack.com/..."

Maintenance Tasks

Daily

• [ ] Check scan completion status
• [ ] Review failed scans
• [ ] Monitor disk space

Weekly

• [ ] Review new high-priority devices
• [ ] Check certificate expiry (30-day warning)
• [ ] Verify backups
• [ ] Review user access

Monthly

• [ ] Database optimization (VACUUM)
• [ ] Archive old scan data (>90 days)
• [ ] Update algorithm databases
• [ ] Review and adjust scoring weights
• [ ] Security audit of user accounts

Quarterly

• [ ] Full system backup test
• [ ] Disaster recovery drill
• [ ] Update dependencies
• [ ] Review vendor roadmaps

Backup & Recovery

Demo Dataset Backup and Loading

ceria demo-data --count 500 --snapshots 4 --seed 20260722

The command creates a timestamped SQLite backup in backups/ before changing scan-domain records. Configuration and users are preserved. Use --backup-dir PATH to change the destination, --append to retain existing scan data, and --seed to reproduce a dataset.

Generated Report Retention

Report metadata is stored in the database and completed files under outputs/reports. Back up both locations if generated reports must survive recovery. Administrators can download or delete completed files from /report-exports; active jobs cannot be deleted.

Backup Strategy

Automated Daily Backup

#!/bin/bash
# /opt/pqcs/backup.sh

DATE=$(date +%Y%m%d_%H%M%S)
BACKUP_DIR="/backups/pqcs"
SOURCE_DB="/var/lib/pqcs/pqcs.db"

# Create backup dir
mkdir -p $BACKUP_DIR

# Backup database
cp $SOURCE_DB "$BACKUP_DIR/pqcs_$DATE.db"

# Compress
gzip "$BACKUP_DIR/pqcs_$DATE.db"

# Backup configuration
tar czf "$BACKUP_DIR/config_$DATE.tar.gz" \
  /opt/pqcs/.env \
  /opt/pqcs/settings.json

# Upload to S3 (optional)
aws s3 cp "$BACKUP_DIR/pqcs_$DATE.db.gz" s3://pqcs-backups/

# Keep only last 30 days
find $BACKUP_DIR -name "*.gz" -mtime +30 -delete

echo "Backup completed: pqcs_$DATE.db.gz"

Crontab:

0 2 * * * /opt/pqcs/backup.sh >> /var/log/pqcs/backup.log 2>&1

Recovery Procedure

Scenario 1: Database Corruption

# Stop application
sudo systemctl stop pqcs

# Restore from backup
sudo cp /backups/pqcs/pqcs_20260701_020000.db /var/lib/pqcs/pqcs.db
sudo chown pqcs:pqcs /var/lib/pqcs/pqcs.db

# Restart
sudo systemctl start pqcs
sudo systemctl status pqcs

Scenario 2: Complete Server Failure

# On new server

# 1. Install PQC Scanner
pip install -e .

# 2. Restore database
cp /backups/pqcs/pqcs_latest.db /var/lib/pqcs/pqcs.db

# 3. Restore config
cp /backups/pqcs/.env /opt/pqcs/.env

# 4. Set permissions
chown -R pqcs:pqcs /var/lib/pqcs /opt/pqcs

# 5. Start service
systemctl start pqcs

Troubleshooting

Database Locked

# Find and kill blocking process
fuser /var/lib/pqcs/pqcs.db

# Or wait for timeout (SQLite release locks on timeout)

Scan Stuck

# Check if nmap is running
ps aux | grep nmap

# Kill hanging nmap
sudo pkill -9 nmap

# Restart scan

Memory Issues

If scanning large networks:

# Reduce concurrent hosts
export MAX_CONCURRENT_HOSTS=25

# Or use smaller subnets
ceria scan 192.168.1.0/25  # /25 instead of /24

SSL Certificate Errors

# Update certificates
sudo update-ca-certificates

# Or disable verification (testing only)
export REQUESTS_CA_BUNDLE=""

High CPU Usage

# Limit scan threads
export OMP_NUM_THREADS=4

# Or schedule scans during off-hours

Last Updated: 2026-07-22

Deployment Guide

Complete guide for deploying PQC Scanner in production environments.

Table of Contents

1. Local Development
2. Production Server
3. cPanel Shared Hosting
4. Docker Deployment
5. Cloud Deployment
6. SSL/TLS Setup
7. Security Hardening

Local Development

Installation

# Clone repository
git clone <repo-url>
cd pqc

# Create virtual environment
python -m venv venv
source venv/bin/activate  # Linux/macOS
# or
venv\Scripts\activate  # Windows

# Install dependencies
pip install -e ".[dev]"

# Run database migrations (if using Alembic)
# alembic upgrade head

# Start development server
ceria dashboard --port 8080 --verbose

Environment Variables

Create .env file:

# Required
SECRET_KEY=$(openssl rand -hex 32)
DATABASE_URL=sqlite:///pqcs.db

# Optional
DEBUG=true
LOG_LEVEL=DEBUG
DASHBOARD_HOST=127.0.0.1
DASHBOARD_PORT=8080

Production Server

System Requirements

• Python 3.10+
• 2GB RAM minimum
• 10GB disk space
• nmap installed
• WeasyPrint runtime libraries for PDF generation
• SSL certificate (recommended)

Installation on Ubuntu/Debian

# Update system
sudo apt-get update
sudo apt-get upgrade -y

# Install dependencies
sudo apt-get install -y python3 python3-pip python3-venv nmap openssl libpango-1.0-0 libpangoft2-1.0-0

# Create user
sudo useradd -r -s /bin/false pqcs

# Create directories
sudo mkdir -p /opt/pqcs
sudo mkdir -p /var/lib/pqcs
sudo mkdir -p /var/log/pqcs
sudo mkdir -p /var/lib/pqcs/reports
sudo chown -R pqcs:pqcs /opt/pqcs /var/lib/pqcs /var/log/pqcs

# Clone application
cd /opt/pqcs
sudo -u pqcs git clone <repo-url> .

# Setup virtual environment
sudo -u pqcs python3 -m venv venv
sudo -u pqcs venv/bin/pip install -e .

# Create .env file
sudo -u pqcs tee /opt/pqcs/.env << 'EOF'
SECRET_KEY=$(openssl rand -hex 32)
DATABASE_URL=sqlite:////var/lib/pqcs/pqcs.db
DASHBOARD_HOST=0.0.0.0
DASHBOARD_PORT=8080
EOF

# Initialize database
sudo -u pqcs venv/bin/python -c "
from pqcs.db import init_db
from pqcs.config import AppConfig
config = AppConfig.from_env()
init_db(config.database.url)
"

Systemd Service

Create /etc/systemd/system/pqcs.service:

[Unit]
Description=PQC Scanner Dashboard
After=network.target

[Service]
Type=simple
User=pqcs
Group=pqcs
WorkingDirectory=/opt/pqcs
Environment="PATH=/opt/pqcs/venv/bin"
EnvironmentFile=/opt/pqcs/.env
ExecStart=/opt/pqcs/venv/bin/uvicorn pqcs.web.app:create_app --host 0.0.0.0 --port 8080
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Start the service:

sudo systemctl daemon-reload
sudo systemctl enable pqcs
sudo systemctl start pqcs
sudo systemctl status pqcs

Nginx Reverse Proxy

Install Nginx:

sudo apt-get install nginx

Create /etc/nginx/sites-available/pqcs:

server {
    listen 80;
    server_name pqcs.example.com;
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl http2;
    server_name pqcs.example.com;

    ssl_certificate /etc/letsencrypt/live/pqcs.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/pqcs.example.com/privkey.pem;

    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_cache_bypass $http_upgrade;
    }

    location /static {
        alias /opt/pqcs/pqcs/web/static;
    }
}

Enable site:

sudo ln -s /etc/nginx/sites-available/pqcs /etc/nginx/sites-enabled/
sudo nginx -t
sudo systemctl reload nginx

cPanel Shared Hosting

Prerequisites

• cPanel with Python support
• SSH access
• Python 3.10+ available

Deployment Steps

1. Upload Files

Upload via FTP or SSH to:

/home/username/public_html/pqcs.example.com/

Files needed:

• passenger_wsgi.py (cPanel WSGI entry point)
• requirements.txt
• pqcs/ directory
• .htaccess

2. Configure .htaccess

Create .htaccess in application root:

PassengerPython /home/username/virtualenv/pqcs/3.11/bin/python
PassengerAppRoot /home/username/public_html/pqcs.example.com
PassengerAppType wsgi
PassengerStartupFile passenger_wsgi.py

3. Create WSGI File

#!/usr/bin/env python3
import os
import sys

APP_ROOT = "/home/username/public_html/pqcs.example.com"
sys.path.insert(0, APP_ROOT)
os.chdir(APP_ROOT)

# Use existing database or create outside web root
DB_PATH = "/home/username/db/pqcs.db"
os.environ['DATABASE_URL'] = f'sqlite:///{DB_PATH}'

from pqcs.web.app import create_app
from pqcs.config import AppConfig

config = AppConfig()
config.database.url = f'sqlite:///{DB_PATH}'

asgi_app = create_app(config)

# WSGI wrapper for FastAPI
import asyncio

class WSGIWrapper:
    def __init__(self, asgi_app):
        self.asgi_app = asgi_app

    def __call__(self, environ, start_response):
        scope = {
            'type': 'http',
            'asgi': {'version': '3.0'},
            'method': environ.get('REQUEST_METHOD', 'GET'),
            'scheme': environ.get('wsgi.url_scheme', 'https'),
            'path': environ.get('PATH_INFO', '/'),
            'query_string': environ.get('QUERY_STRING', '').encode(),
            'headers': [],
            'server': (environ.get('SERVER_NAME', 'localhost'), int(environ.get('SERVER_PORT', 443))),
            'client': (environ.get('REMOTE_ADDR', '127.0.0.1'), int(environ.get('REMOTE_PORT', 0) or 0)),
        }

        # Handle headers and body
        body = b''
        if 'wsgi.input' in environ:
            cl = environ.get('CONTENT_LENGTH')
            if cl:
                try:
                    body = environ['wsgi.input'].read(int(cl))
                except:
                    pass

        messages = []

        async def receive():
            return {'type': 'http.request', 'body': body, 'more_body': False}

        async def send(message):
            messages.append(message)

        loop = asyncio.new_event_loop()
        try:
            asyncio.set_event_loop(loop)
            loop.run_until_complete(self.asgi_app(scope, receive, send))

            start_msg = next(m for m in messages if m['type'] == 'http.response.start')
            status = f"{start_msg['status']}"
            headers = [(k.decode() if isinstance(k, bytes) else k,
                       v.decode() if isinstance(v, bytes) else v)
                      for k, v in start_msg.get('headers', [])]
            start_response(status, headers)

            body_parts = [m.get('body', b'') for m in messages if m['type'] == 'http.response.body']
            return body_parts if body_parts else [b'']
        finally:
            loop.close()

application = WSGIWrapper(asgi_app)

4. Setup Python App in cPanel

1. Login to cPanel
2. Go to Setup Python App
3. Click Create Application
4. Configure:

• Python version: 3.11
• Application root: public_html/pqcs.example.com
• Application URL: pqcs.example.com
• Application startup file: passenger_wsgi.py
• Application Entry point: application

1. Click Create

5. Install Dependencies

SSH into server:

cd /home/username/public_html/pqcs.example.com
source /home/username/virtualenv/pqcs/3.11/bin/activate
pip install -r requirements.txt

# Create database directory outside web root
mkdir -p /home/username/db
chmod 755 /home/username/db

# Initialize database
python << 'EOF'
import sys
sys.path.insert(0, '/home/username/public_html/pqcs.example.com')
from pqcs.db import init_db
init_db('sqlite:////home/username/db/pqcs.db')
print("Database initialized")
EOF

# Create restart signal
mkdir -p tmp
touch tmp/restart.txt

6. Environment Variables

In cPanel Python App settings, add:

7. Troubleshooting cPanel

Common issues:

Docker Deployment

Dockerfile

FROM python:3.11-slim

# Install system dependencies
RUN apt-get update && apt-get install -y \
    nmap \
    libpq-dev \
    && rm -rf /var/lib/apt/lists/*

# Create app directory
WORKDIR /app

# Copy requirements first for caching
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

# Copy application
COPY . .
RUN pip install -e .

# Create directories
RUN mkdir -p /data /logs

# Environment
ENV DATABASE_URL=sqlite:////data/pqcs.db
ENV DASHBOARD_HOST=0.0.0.0
ENV DASHBOARD_PORT=8080
ENV PYTHONUNBUFFERED=1

# Initialize database
RUN python -c "from pqcs.db import init_db; init_db('$DATABASE_URL')"

EXPOSE 8080

CMD ["pqcs", "dashboard", "--host", "0.0.0.0", "--port", "8080"]

docker-compose.yml

version: '3.8'

services:
  pqcs:
    build: .
    container_name: pqcs
    ports:
      - "8080:8080"
    volumes:
      - ./data:/data
      - ./logs:/logs
    environment:
      - SECRET_KEY=${SECRET_KEY}
      - DATABASE_URL=sqlite:////data/pqcs.db
    restart: unless-stopped
    networks:
      - pqcs-network

  # Optional: Nginx reverse proxy
  nginx:
    image: nginx:alpine
    container_name: pqcs-nginx
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./nginx.conf:/etc/nginx/nginx.conf
      - ./ssl:/etc/nginx/ssl
    depends_on:
      - pqcs
    networks:
      - pqcs-network

networks:
  pqcs-network:
    driver: bridge

Build and Run

# Generate secret key
export SECRET_KEY=$(openssl rand -hex 32)

# Create directories
mkdir -p data logs

# Build and run
docker-compose up -d --build

# View logs
docker-compose logs -f pqcs

# Stop
docker-compose down

Cloud Deployment

AWS Elastic Beanstalk

# Install EB CLI
pip install awsebcli

# Initialize
eb init -p python-3.11 pqcs-app

# Create environment
eb create pqcs-env

# Deploy
eb deploy

Heroku

# Create Procfile
echo "web: ceria dashboard --port \$PORT" > Procfile

# Create app
heroku create pqcs-app

# Set environment variables
heroku config:set SECRET_KEY=$(openssl rand -hex 32)
heroku config:set DATABASE_URL=$(heroku config:get DATABASE_URL)

# Deploy
git push heroku main

Railway

# Install Railway CLI
npm install -g @railway/cli

# Login
railway login

# Initialize
railway init

# Deploy
railway up

# Add environment variables in Railway dashboard

SSL/TLS Setup

Let's Encrypt (certbot)

# Install certbot
sudo apt-get install certbot python3-certbot-nginx

# Obtain certificate
sudo certbot --nginx -d pqcs.example.com

# Auto-renewal
sudo certbot renew --dry-run

Self-Signed Certificate (testing)

# Generate certificate
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout /etc/ssl/private/pqcs.key \
  -out /etc/ssl/certs/pqcs.crt

# Update Nginx config to use these

Security Hardening

File Permissions

# Database
chmod 600 /var/lib/pqcs/pqcs.db
chown pqcs:pqcs /var/lib/pqcs/pqcs.db

# Application files
chmod 755 /opt/pqcs
chmod 644 /opt/pqcs/.env
chown -R pqcs:pqcs /opt/pqcs

# Logs
chmod 755 /var/log/pqcs
chown pqcs:pqcs /var/log/pqcs

Firewall Rules

# Allow only HTTPS
sudo ufw default deny incoming
sudo ufw allow ssh
sudo ufw allow 443/tcp
sudo ufw enable

# Or use iptables
sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT
sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT
sudo iptables -P INPUT DROP

Fail2Ban

Install and configure for brute force protection:

sudo apt-get install fail2ban

Create /etc/fail2ban/jail.local:

[pqcs]
enabled = true
port = http,https
filter = pqcs
logpath = /var/log/pqcs/access.log
maxretry = 5
bantime = 3600

Security Headers

Add to Nginx config:

add_header X-Frame-Options "SAMEORIGIN" always;
add_header X-Content-Type-Options "nosniff" always;
add_header X-XSS-Protection "1; mode=block" always;
add_header Referrer-Policy "strict-origin-when-cross-origin" always;
add_header Content-Security-Policy "default-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval' cdn.jsdelivr.net unpkg.com; style-src 'self' 'unsafe-inline' cdn.jsdelivr.net; img-src 'self' data:; font-src 'self'; connect-src 'self'; frame-ancestors 'none';" always;

Backup Strategy

Persist and back up both the database and generated-report directory. If outputs/reports remains inside the application checkout, include it in deployment backups or configure the service working directory on persistent storage.

# Daily database backup
#!/bin/bash
BACKUP_DIR="/backups/pqcs"
DATE=$(date +%Y%m%d_%H%M%S)
mkdir -p $BACKUP_DIR

cp /var/lib/pqcs/pqcs.db "$BACKUP_DIR/pqcs_$DATE.db"
gzip "$BACKUP_DIR/pqcs_$DATE.db"

# Keep only last 30 days
find $BACKUP_DIR -name "*.gz" -mtime +30 -delete

Add to crontab:

0 2 * * * /opt/pqcs/backup.sh

Monitoring

Health Check Endpoint

GET /health

Returns:

{
  "status": "ok",
  "timestamp": "2026-07-22T12:00:00",
  "version": "0.1.0",
  "database": "connected"
}

Prometheus Metrics (optional)

Add to requirements:

prometheus-client>=0.17.0

Last Updated: 2026-07-22

Cryptographic Collectors

1. TLS/SSL Collector

• TLS versions (1.0, 1.1, 1.2, 1.3)
• Cipher suites (quantum-vulnerable vs PQC-ready)
• Certificate chains
• Weak signatures (MD5, SHA-1)
• Hybrid certificates

2. SSH Collector

• Key algorithms (RSA, ECDSA, Ed25519)
• KEX algorithms
• MAC algorithms
• Weak curves (secp192, secp224)

3. VPN Collector

• IKE version (v1, v2)
• Transform proposals
• DH groups

4. Database Collector

• Transparent Data Encryption (TDE)
• Connection encryption
• SSL/TLS configuration

5. OS Crypto Collector

• System certificate stores
• Trusted root CAs
• Installed certificates

6. App Config Collector

• OpenSSL configs
• Java keystores
• Algorithm configurations

7. Certificate Store Collector

• Certificate files (.pem, .crt, .p12)
• Trust stores
• Private key files

Demo Collector Coverage

Enterprise demo data includes findings associated with TLS, SSH, VPN, database encryption, operating-system crypto, application configuration, and certificate-store collectors.

Default Ports

SSH

• 22, 2222

TLS/HTTPS

• 443, 8443, 4443, 993, 995, 990, 636, 3269, 8080, 9090

VPN

• 500, 4500, 1194, 1723

Database

• 5432 (PostgreSQL)
• 1433 (MSSQL)
• 3306 (MySQL)
• 1521 (Oracle)
• 27017 (MongoDB)
• 6379 (Redis)
• 9042 (Cassandra)

Mail

• 143, 993 (IMAP)
• 110, 995 (POP3)
• 25, 465, 587 (SMTP)

LDAP/Kerberos

• 389, 636, 88, 3268, 3269

RDP/VNC

• 3389, 5900, 5901

SMB

• 135, 139, 445

Custom Ports

Add custom ports in Settings:

Format: comma-separated or ranges
Example: 9000,9001,9002-9010,10000

Screenshots Gallery

Visual walkthrough of PQC Scanner interface.

Login & Authentication

Login Page

Login Form

Main Interface

Dashboard

Scan Control

Device Inventory

Settings

Analysis Pages

HNDL Risk Analysis

Reports & Visualization

Export To Menu

Generated Reports

Troubleshooting

Common Issues

403 Forbidden (cPanel)

# Fix file permissions via SSH
cd /home/username/public_html/pqcs.example.com
chmod 644 .htaccess passenger_wsgi.py
chmod 755 pqcs/

500 Internal Server Error

1. Check cPanel > Logs > Error Log
2. Verify Python dependencies:

source /home/username/virtualenv/pqcs/3.11/bin/activate
pip install -r requirements.txt

1. Check passenger_wsgi.py syntax:

python -m py_compile passenger_wsgi.py

Database Connection Issues

# Create database directory outside web root
mkdir -p /home/username/db
chmod 755 /home/username/db
chmod 666 /home/username/db/pqcs.db  # or 644 after creation

# Update DATABASE_URL environment variable:
# sqlite:////home/username/db/pqcs.db

Login Failures (422 Error)

1. Ensure SECRET_KEY environment variable is set in cPanel
2. Check bcrypt and pyjwt are installed:

pip list | grep -E 'bcrypt|PyJWT'

1. Reset password via CLI if needed:

python << 'EOF'
import bcrypt
from pqcs.db import init_db, User
from pqcs.config import AppConfig

config = AppConfig()
db = init_db(config.database.url)

user = db.query(User).filter_by(username="admin").first()
if user:
    new_pw = bcrypt.hashpw(b"admin", bcrypt.gensalt())
    user.password_hash = new_pw.decode()
    db.commit()
    print("Password reset to: admin")
EOF

SSH Connection Failures

• Verify SSH credentials in Settings page:

• Check known_hosts file
• Verify firewall allows SSH (port 22)

Application Won't Start

1. Check app shows as "Running" in cPanel Python App
2. Verify passenger_wsgi.py exists and exposes application
3. Restart the app:

cd /home/username/public_html/pqcs.example.com
mkdir -p tmp && touch tmp/restart.txt

Debug Mode

# Enable debug logging
ceria --verbose dashboard

# Or set environment variable
export LOG_LEVEL=DEBUG
ceria dashboard

Log Locations

Getting Help

1. Check this troubleshooting guide
2. Review relevant section in User Manual
3. Check application logs
4. Open issue in repository

Report Job Troubleshooting

• If a job remains queued, confirm the application can write to outputs/reports; restarting recovers queued work.
• If PDF generation fails, verify WeasyPrint and its platform libraries are installed in CERIA's Python environment.
• If PQC Excel generation fails, confirm docs/PQC Template.xlsx exists and is readable.
• Active jobs cannot be deleted; wait for completion or failure.

About

Project Information

About the Author

CERIA was developed by Yusri to address the growing need for post-quantum cryptography assessment tools in Malaysia.

Mission

What is CERIA?

CERIA is a Post-Quantum Cryptography Scanner that implements Malaysia's NCII SCAD (Sectoral Cybersecurity Assessment Dashboard) Framework. It helps organizations:

• Discover cryptographic assets across their infrastructure
• Assess quantum vulnerability using standardized risk scoring
• Calculate Harvest Now, Decrypt Later (HNDL) risks
• Plan migration to post-quantum cryptography
• Comply with MySEAL and NCII requirements

Deployment

CERIA is currently deployed and running on cPanel Shared Hosting at https://pqcs.dysfunktion.tech.

Technical Stack

• Backend: Python 3.11, FastAPI
• Database: SQLite
• Frontend: HTML/Tailwind CSS
• Scanning: nmap, custom cryptographic collectors

License

CERIA - Post-Quantum Cryptography Scanner

Author: Yusri (yusri@dysfunktion.tech)

Related Documentation

• CERIA Project Index - Project overview and quick links
• Quick Start - Get started in 5 minutes
• Installation - Installation guide
• User Manual - Complete feature documentation

Documentation Release

This documentation reflects the 2026-07-22 release with enterprise demo data, paginated analysis, persistent report queues, WeasyPrint PDF generation, and populated PQC Excel exports.
